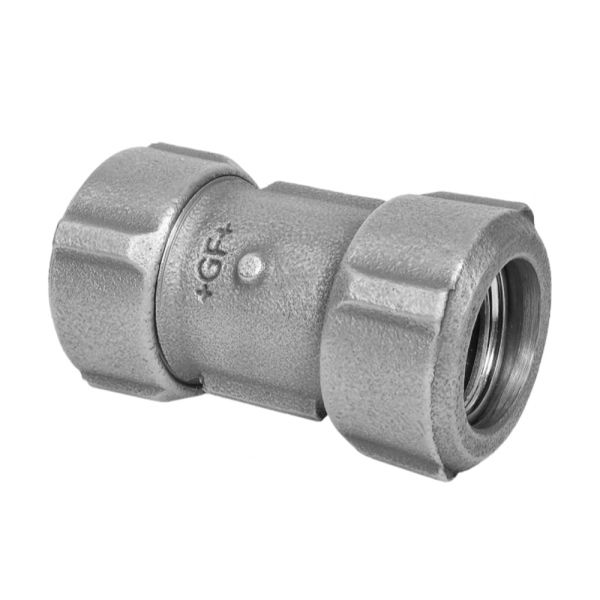

Coupling Steel x PE NBR
Useful Information
PRIMOFIT, from Georg Fischer, is a range of end-load resistant (push and pull out), malleable iron compression fittings, for use with PE, steel or lead pipe.
These fittings are suitable for the conveyance of water or gas in a range of applications, including building technology, utilities, compressed air, oil, and heating.
These PRIMOFIT compression couplings have NBR gaskets and are for connection to ISO 65 steel pipe and PE SDR11/S 5.
| Material | Malleable Iron |
| Colour | Black |
| Pressure Rating | up to 8 bar - Gas up to 16 bar - Water |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. Steel (inch) | Dim. PE (mm) | D (mm) | L (mm) | x (mm) | x1 (mm) | Weight (kg) |
| 399622 | 1 | 32 x 3.0 | 59 | 95 | 30 - 34 | 31 - 33 | 0.579 |
| 399623 | 2 | 63 x 5.8 | 96 | 113 | 36 - 42 | 39 - 47 | 1.666 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
