Twin Elbow 90 F Thread

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Female BSPP threads

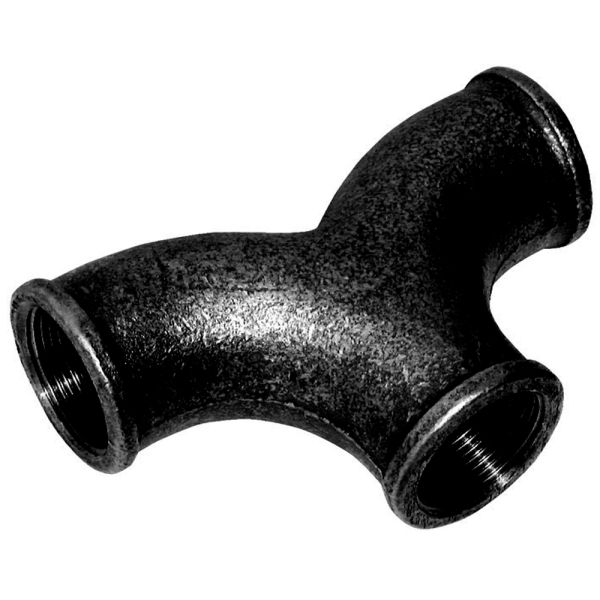

Malleable Iron Twin Elbow 90

Product Code Diameter (inch) a (mm) z (mm) Pressure Rating (bar)
362454 ½ 45 32 25
362455 ¾ 50 35 25
362456 1 63 46 25
362457 76 57 25
362458 85 66 25
362459 2 102 78 25



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362454MLB IRN GF Twin Elbow 90 Female Black 1/2" £17.50 30% £12.25
362455MLB IRN GF Twin Elbow 90 Female Black 3/4" £18.50 30% £12.95
362456MLB IRN GF Twin Elbow 90 Female Black 1" £28.85 30% £20.20
362457MLB IRN GF Twin Elbow 90 Female Black 1 1/4" £55.50 30% £38.85
362458MLB IRN GF Twin Elbow 90 Female Black 1 1/2" £76.30 30% £53.41
362459MLB IRN GF Twin Elbow 90 Female Black 2" £90.35 30% £63.25
