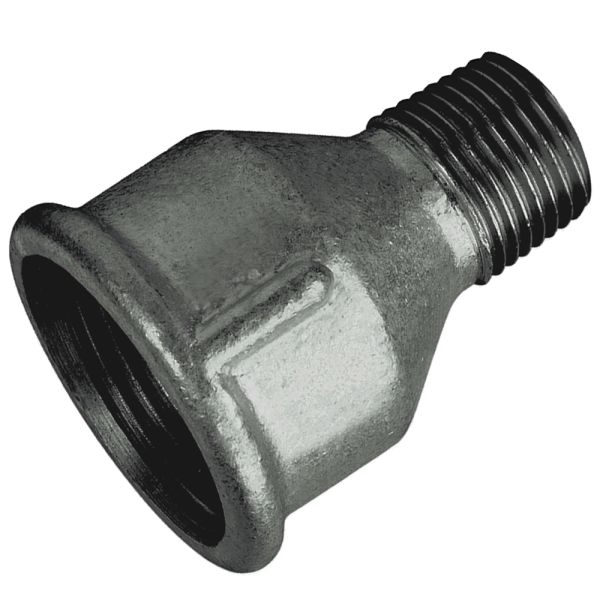

Reducing Socket Male x Female

Reducing Socket Male x Female

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron/steel (black)
  • Male BSPT thread
  • Female BSPP thread

Malleable Iron Reducing Socket

Product Code Dimension 1 (inch) Dimension 2 (inch) a (mm) z (mm)
362653 ¾ ½ 48 33
362654 1 ¾ 55 38
362655 1 60 41



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These reducing sockets are used for the connection of two pieces of threaded pipe of different dimensions with the larger pipe being male threaded and the smaller pipe female threaded.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
MLB IRN GF Reducing Socket F x M Black 3/4" x 1/2"
Code
362653
Product Name
MLB IRN GF Reducing Socket F x M Black 3/4" x 1/2"
List Price
£3.90
You Pay
£2.73
You Save
30%
Qty
MLB IRN GF Reducing Socket F x M Black 1" x 3/4"
Code
362654
Product Name
MLB IRN GF Reducing Socket F x M Black 1" x 3/4"
List Price
£6.10
You Pay
£4.27
You Save
30%
Qty
MLB IRN GF Reducing Socket F x M Black 1 1/4" x 1"
Code
362655
Product Name
MLB IRN GF Reducing Socket F x M Black 1 1/4" x 1"
List Price
£9.90
You Pay
£6.93
You Save
30%
Qty
3 products
