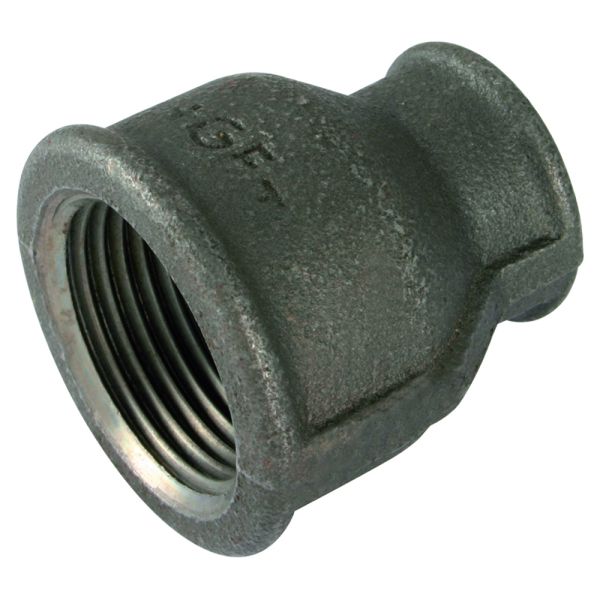

Reducing Socket F Thread

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs & Dimensions:

Material: malleable iron (black)
Female BSPP threads

Malleable Iron Cross Female

Product Code	Diameter 1 (inch)	Diameter 2 (inch)	a (mm)	z2 (mm)	Pressure Rating (bar)
362484	¼	⅛	27	10	25
362485	⅜	¼	30	10	25
362486	½	¼	36	13	25
362487	½	⅜	36	13	25
362488	¾	⅜	39	14	25
362489	¾	½	39	11	25
362490	1	½	45	15	25
362491	1	¾	45	13	25
362492	1¼	½	50	18	25
362493	1¼	¾	50	16	25
362494	1¼	1	50	14	25
362495	1½	½	55	23	25
362496	1½	¾	55	21	25
362497	1½	1	55	19	25
362498	1½	1¼	55	17	25
362499	2	¾	65	26	25
362500	2	1	65	24	25
362501	2	1¼	65	22	25
362502	2	1½	65	22	25
362503	2½	1½	74	28	25
362504	2½	2	74	23	25
362505	3	1½	80	31	25
362506	3	2	80	26	25
362508	4	2	94	34	25
362509	4	2½	94	31	25
362510	4	3	94	28	25

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
362484	MLB IRN GF Reducing Socket Black 1/4" x 1/8"	£12.24	50%	£6.12
362485	MLB IRN GF Reducing Socket Black 3/8" x 1/4"	£6.44	50%	£3.22
362486	MLB IRN GF Reducing Socket Black 1/2" x 1/4"	£6.84	50%	£3.42
362487	MLB IRN GF Reducing Socket Black 1/2" x 3/8"	£10.08	50%	£5.04
362488	MLB IRN GF Reducing Socket Black 3/4" x 3/8"	£7.84	50%	£3.92
362489	MLB IRN GF Reducing Socket Black 3/4" x 1/2"	£12.28	50%	£6.14
362490	MLB IRN GF Reducing Socket Black 1" x 1/2"	£14.20	50%	£7.10
362491	MLB IRN GF Reducing Socket Black 1" x 3/4"	£10.32	50%	£5.16
362492	MLB IRN GF Reducing Socket Black 1 1/4" x 1/2"	£27.48	50%	£13.74
362493	MLB IRN GF Reducing Socket Black 1 1/4" x 3/4"	£14.16	50%	£7.08
362494	MLB IRN GF Reducing Socket Black 1 1/4" x 1"	£27.28	50%	£13.64
362495	MLB IRN GF Reducing Socket Black 1 1/2" x 1/2"	£53.72	50%	£26.86
362496	MLB IRN GF Reducing Socket Black 1 1/2" x 3/4"	£46.16	50%	£23.08
362497	MLB IRN GF Reducing Socket Black 1 1/2" x 1"	£34.32	50%	£17.16
362498	MLB IRN GF Reducing Socket Black 1 1/2" x 1 1/4"	£35.84	50%	£17.92
362499	MLB IRN GF Reducing Socket Black 2" x 3/4"	£49.00	50%	£24.50
362500	MLB IRN GF Reducing Socket Black 2" x 1"	£32.64	50%	£16.32
362501	MLB IRN GF Reducing Socket Black 2" x 1 1/4"	£29.44	50%	£14.72
362502	MLB IRN GF Reducing Socket Black 2" x 1 1/2"	£50.28	50%	£25.14
362503	MLB IRN GF Reducing Socket Black 2 1/2" x 1 1/2"	£108.16	50%	£54.08
362504	MLB IRN GF Reducing Socket Black 2 1/2" x 2"	£90.40	50%	£45.20
362505	MLB IRN GF Reducing Socket Black 3" x 1 1/2"	£175.04	50%	£87.52
362506	MLB IRN GF Reducing Socket Black 3" x 2"	£149.84	50%	£74.92
362507	MLB IRN GF Reducing Socket Black 3" x 2 1/2"	£155.24	50%	£77.62
362508	MLB IRN GF Reducing Socket Black 4" x 2"	£210.28	50%	£105.14
362509	MLB IRN GF Reducing Socket Black 4" x 2 1/2"	£279.68	50%	£139.84
362510	MLB IRN GF Reducing Socket Black 4" x 3"	£277.20	50%	£138.60
