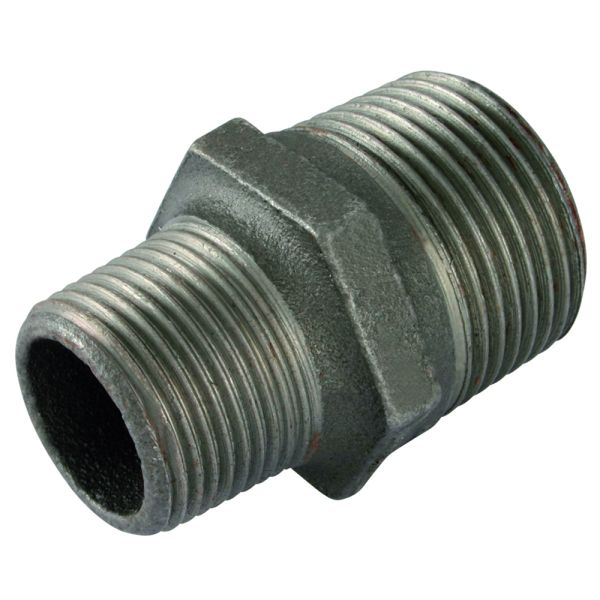

Reducing Nipple M Thread
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron/steel (black)
- Male BSPT thread
| Product Code | Dimension 1 (inch) | Dimension 2 (inch) | a (mm) | s (mm) |
| 362618* | ¼ | ⅛ | 35 | 17 |
| 362619* | ⅜ | ¼ | 38 | 19 |
| 362620 | ½ | ¼ | 44 | 27 |
| 362621 | ½ | ⅜ | 44 | 22 |
| 362622 | ¾ | ⅜ | 47 | 30 |
| 362623 | ¾ | ½ | 47 | 31 |
| 362624 | 1 | ½ | 53 | 36 |
| 362625 | 1 | ¾ | 53 | 36 |
| 362626 | 1¼ | ¾ | 57 | 46 |
| 362627 | 1¼ | 1 | 57 | 46 |
| 362628 | 1½ | 1 | 59 | 50 |
| 362629 | 1½ | 1¼ | 59 | 50 |
| 362630 | 2 | 1 | 68 | 65 |
| 362631 | 2 | 1¼ | 68 | 65 |
| 362632 | 2 | 1½ | 68 | 65 |
| 362633 | 3 | 2 | 83 | 95 |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
* Fitting made with electroplated galvanised steel and not suitable for use with potable water.
Useful Info:
These reducing nipples are used for the connection of two pieces of female threaded pipe of different dimensions.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
