Reducing Elbow 90 M x F

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Male BSPT x female BSPP threads

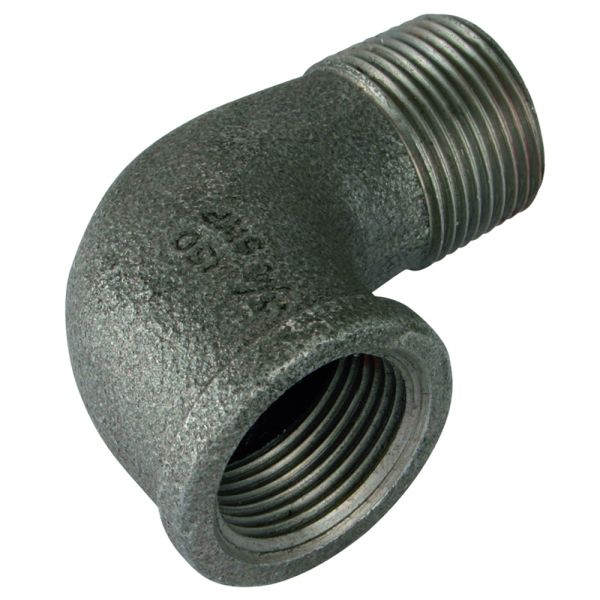

Malleable Iron Reducing Elbow 90 Male x Female

Product Code Diameter 1 (inch) Diameter 2 (inch) a (mm) c (mm) z1 (mm) Pressure Rating (bar)
362165 ¾ ½ 30 40 15 25
362166 1 ¾ 35 46 18 25


IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These elbows are used for the connection of differently sized male to female malleable iron pipe or fittings at an angle of 90°. They are shorter than bends, so are used where space is limited.


If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362165MLB IRN GF Reducing Elbow 90 M x F Black 3/4" x 1/2" £13.25 30% £9.28
362166MLB IRN GF Reducing Elbow 90 M x F Black 1" x 3/4" £18.30 30% £12.81
