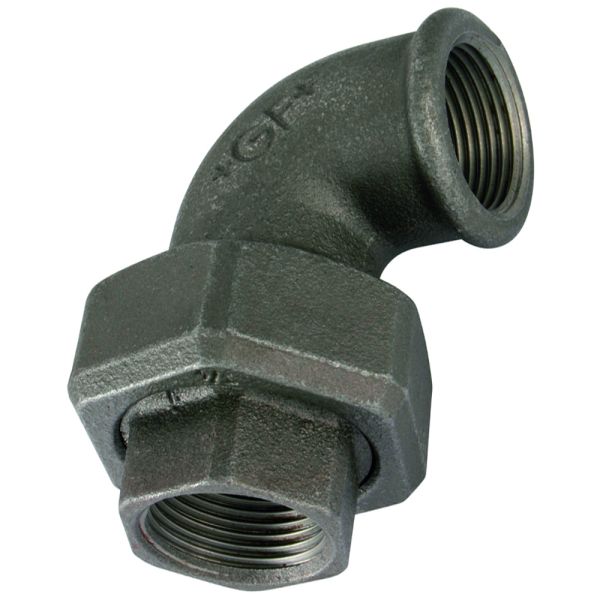

Union Elbow 90 F Thread
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (black)
- Female BSPP threads
| Product Code | Diameter (inch) | Nut (inch) | a (mm) | c (mm) | z1 (mm) | z2 (mm) | s1 (mm) | s2 (mm) | Pressure Rating (bar) |
| 362173 | ½ | 1 | 58 | 28 | 15 | 45 | 25 | 41 | 25 |
| 362174 | ¾ | 1¼ | 62 | 33 | 18 | 47 | 32 | 48 | 25 |
| 362175 | 1 | 1½ | 72 | 38 | 21 | 55 | 38 | 55 | 25 |
| 362176 | 1¼ | 2 | 82 | 45 | 26 | 63 | 48 | 67 | 25 |
| 362177 | 1½ | 2¼ | 90 | 50 | 31 | 71 | 54 | 74 | 25 |
| 362178 | 2 | 2¾ | 100 | 58 | 34 | 76 | 66 | 90 | 25 |
