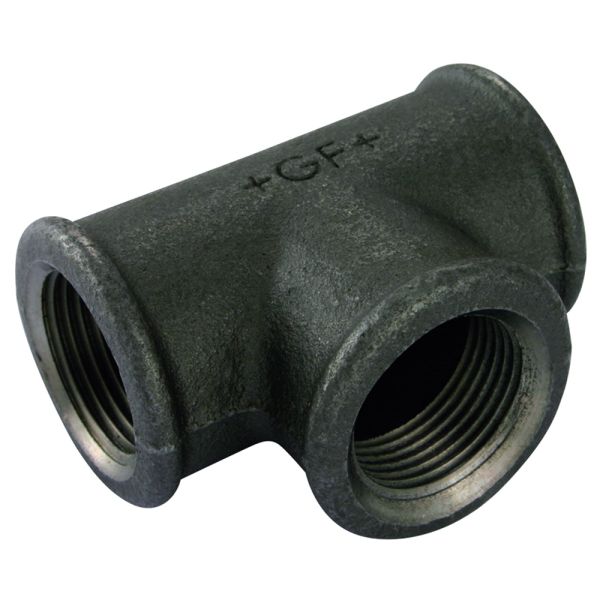

Tee 90 F Thread
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (black)
- Female BSPP threads
| Product Code | Diameter (inch) | a (mm) | z (mm) | Pressure Rating (bar) |
| 362232 | ¼ | 21 | 11 | 25 |
| 362233 | ⅜ | 25 | 15 | 25 |
| 362234 | ½ | 28 | 15 | 25 |
| 362235 | ¾ | 33 | 18 | 25 |
| 362236 | 1 | 38 | 21 | 25 |
| 362237 | 1¼ | 45 | 26 | 25 |
| 362238 | 1½ | 50 | 31 | 25 |
| 362239 | 2 | 58 | 34 | 25 |
| 362240 | 2½ | 69 | 42 | 25 |
| 362241 | 3 | 78 | 48 | 25 |
| 362242 | 4 | 96 | 60 | 25 |
| 362243 | 5 | - | - | 25 |
| 362244 | 6 | - | - | 25 |
