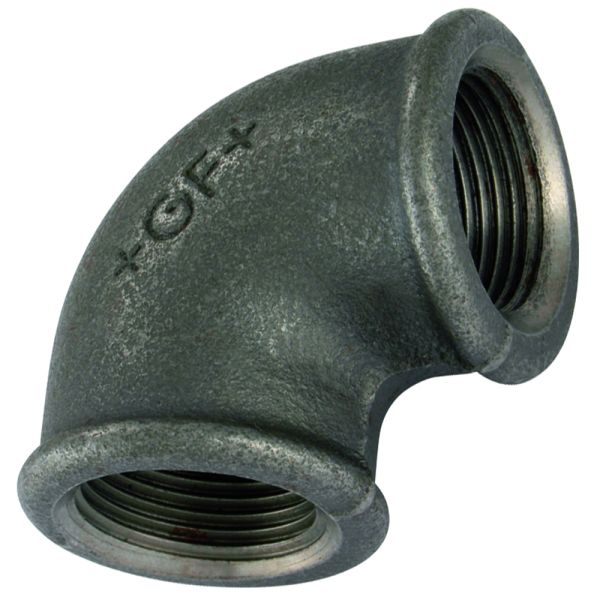

Reducing Elbow 90 F Thread

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Female BSPP threads

Malleable Iron Reducing Elbow 90 Female

Product Code Diameter 1 (inch) Diameter 2 (inch) a (mm) b (mm) z1 (mm) z2 (mm) Pressure Rating (bar)
362129 ¼ 23 23 13 13 25
362130 ½ ¼ 24 24 11 14 25
362131 ½ 26 26 13 16 25
362132 ¾ ½ 30 31 15 18 25
362133 1 ½ 32 34 15 21 25
362134 1 ¾ 35 36 18 21 25
362135 1 40 42 21 25 25



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These elbows are used for the connection of differently sized male malleable iron pipe or fittings at an angle of 90°. They are shorter than bends, so are used where space is limited.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362129MLB IRN GF Reducing Elbow 90 Female Black 3/8" x 1/4" £6.45 30% £4.52
362130MLB IRN GF Reducing Elbow 90 Female Black 1/2" x 1/4" £9.00 30% £6.30
362131MLB IRN GF Reducing Elbow 90 Female Black 1/2" x 3/8" £5.40 30% £3.78
362132MLB IRN GF Reducing Elbow 90 Female Black 3/4" x 1/2" £4.70 30% £3.29
362133MLB IRN GF Reducing Elbow 90 Female Black 1" x 1/2" £6.55 30% £4.59
362134MLB IRN GF Reducing Elbow 90 Female Black 1" x 3/4" £8.90 30% £6.23
362135MLB IRN GF Reducing Elbow 90 Female Black 1 1/4" x 1" £11.50 30% £8.05
