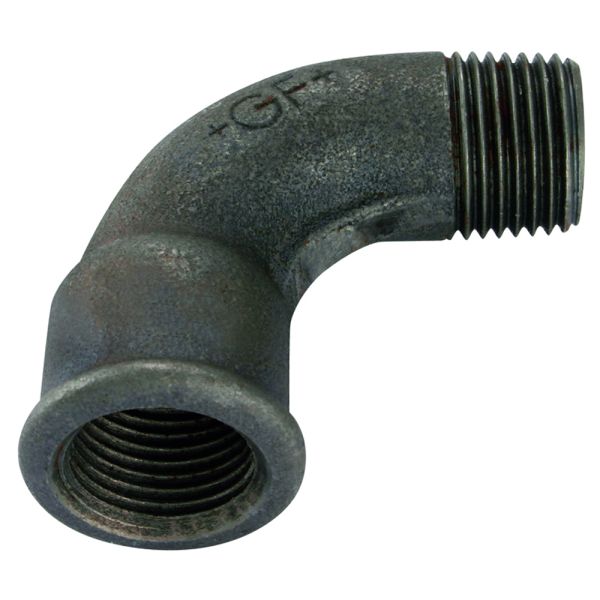

Bend 90 M x F

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Male BSPT x female BSPP threads

Malleable Iron Bend 90 Male x Female

Product Code Diameter (inch) a (mm) b (mm) z (mm) Pressure Rating (bar)
362001 ¼ 30 30 20 25
362002 36 36 26 25
362003 ½ 45 45 32 25
362004 ¾ 50 50 35 25
362005 1 63 63 46 25
362006 76 76 57 25
362007 85 85 66 25
362008 2 102 102 78 25
362009 115 115 88 25
362010 3 127 127 97 25
362011 4 165 165 129 25



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These bends are used for the connection of equally sized male and female malleable iron pipe or fittings at an angle of 90°.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362001MLB IRN GF Bend 90 Short M x F Black 1/4" £7.15 30% £5.01
362002MLB IRN GF Bend 90 Short M x F Black 3/8" £7.00 30% £4.90
362003MLB IRN GF Bend 90 Short M x F Black 1/2" £4.95 30% £3.47
362004MLB IRN GF Bend 90 Short M x F Black 3/4" £8.75 30% £6.13
362005MLB IRN GF Bend 90 Short M x F Black 1" £12.30 30% £8.61
362006MLB IRN GF Bend 90 Short M x F Black 1 1/4" £18.20 30% £12.74
362007MLB IRN GF Bend 90 Short M x F Black 1 1/2" £30.20 30% £21.14
362008MLB IRN GF Bend 90 Short M x F Black 2" £52.85 30% £37.00
362009MLB IRN GF Bend 90 Short M x F Black 2 1/2" £80.95 30% £56.67
362010MLB IRN GF Bend 90 Short M x F Black 3" £135.25 30% £94.68
362011MLB IRN GF Bend 90 Short M x F Black 4" £335.15 30% £234.61
