Flange

Flange

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Female BSPP thread
  • PN1

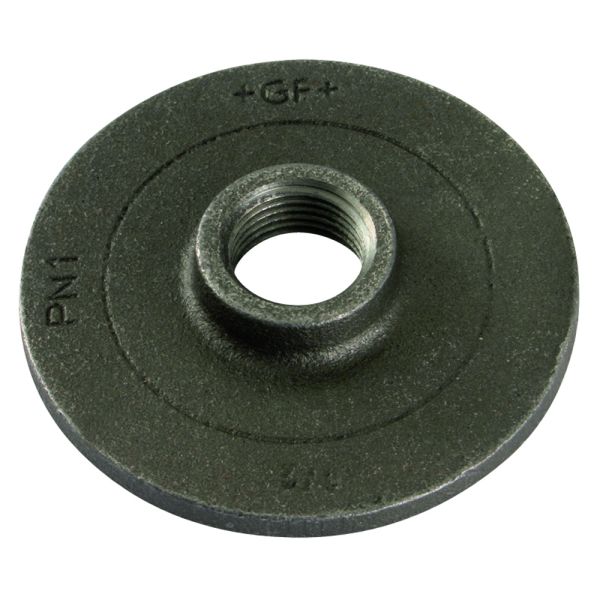

Malleable Iron Flange

Product Code Diameter 1 (inch) a (mm) b (mm) k (mm) H (mm) D (mm)
362817 ½ 28 5 55 13 80
362818 ¾ 38 6 65 14 90
362819 1 47 9 75 17 100
362820 1 ¼ 51 10 90 21 120
362821 1 ½ 56 10 100 21 130
362822 2 68 11 110 22 140



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
MLB IRN GF Flange Black 1/2"
Code
362817
Product Name
MLB IRN GF Flange Black 1/2"
List Price
£15.70
You Pay
£10.99
You Save
30%
Qty
MLB IRN GF Flange Black 3/4"
Code
362818
Product Name
MLB IRN GF Flange Black 3/4"
List Price
£20.35
You Pay
£14.25
You Save
30%
Qty
MLB IRN GF Flange Black 1"
Code
362819
Product Name
MLB IRN GF Flange Black 1"
List Price
£22.75
You Pay
£15.93
You Save
30%
Qty
MLB IRN GF Flange Black 1 1/4"
Code
362820
Product Name
MLB IRN GF Flange Black 1 1/4"
List Price
£27.90
You Pay
£19.53
You Save
30%
Qty
MLB IRN GF Flange Black 1 1/2"
Code
362821
Product Name
MLB IRN GF Flange Black 1 1/2"
List Price
£40.25
You Pay
£28.18
You Save
30%
Qty
MLB IRN GF Flange Black 2"
Code
362822
Product Name
MLB IRN GF Flange Black 2"
List Price
£40.80
You Pay
£28.56
You Save
30%
Qty
6 products
