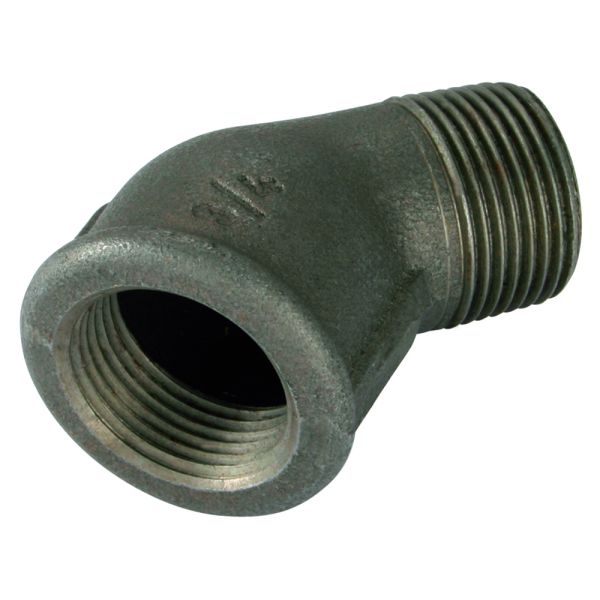

Elbow 45 M x F

Elbow 45 M x F

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Male BSPT x female BSPP threads

Malleable Iron Elbow 45 Male x Female

Product Code Diameter (inch) a (mm) b (mm) z (mm) Pressure Rating (bar)
362214 20 25 10 25
362215 ½ 22 28 9 25
362216 ¾ 25 32 10 25
362217 1 28 37 11 25
362218 33 43 14 25
362219 36 46 17 25
362220 2 43 55 19 25
362221 46 54 19 25
362222 3 52 61 22 25



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
MLB IRN GF Elbow 45 M x F Black 3/8"
Code
362213
Product Name
MLB IRN GF Elbow 45 M x F Black 3/8"
List Price
£7.50
You Pay
£5.25
You Save
30%
Qty
MLB IRN GF Elbow 45 M x F Black 1/2"
Code
362214
Product Name
MLB IRN GF Elbow 45 M x F Black 1/2"
List Price
£5.60
You Pay
£3.92
You Save
30%
Qty
MLB IRN GF Elbow 45 M x F Black 3/4"
Code
362215
Product Name
MLB IRN GF Elbow 45 M x F Black 3/4"
List Price
£7.10
You Pay
£4.97
You Save
30%
Qty
MLB IRN GF Elbow 45 M x F Black 1"
Code
362216
Product Name
MLB IRN GF Elbow 45 M x F Black 1"
List Price
£12.95
You Pay
£9.07
You Save
30%
Qty
MLB IRN GF Elbow 45 M x F Black 1 1/4"
Code
362217
Product Name
MLB IRN GF Elbow 45 M x F Black 1 1/4"
List Price
£24.90
You Pay
£17.43
You Save
30%
Qty
MLB IRN GF Elbow 45 M x F Black 1 1/2"
Code
362218
Product Name
MLB IRN GF Elbow 45 M x F Black 1 1/2"
List Price
£28.55
You Pay
£19.99
You Save
30%
Qty
MLB IRN GF Elbow 45 M x F Black 2"
Code
362219
Product Name
MLB IRN GF Elbow 45 M x F Black 2"
List Price
£35.80
You Pay
£25.06
You Save
30%
Qty
MLB IRN GF Elbow 45 M x F Black 2 1/2"
Code
362220
Product Name
MLB IRN GF Elbow 45 M x F Black 2 1/2"
List Price
£62.60
You Pay
£43.82
You Save
30%
Qty
MLB IRN GF Elbow 45 M x F Black 3"
Code
362221
Product Name
MLB IRN GF Elbow 45 M x F Black 3"
List Price
£98.05
You Pay
£68.64
You Save
30%
Qty
9 products
