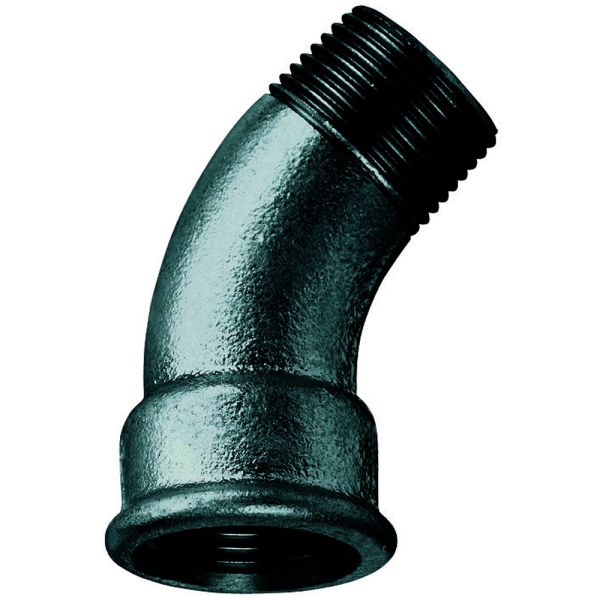

Bend 45 Long Male x Female

Bend 45 Long Male x Female

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Male BSPT x Female BSPP threads

Malleable Iron Bend 45 Long Male x Female

Product Code Diameter (inch) a (mm) b (mm) z (mm) Pressure Rating (bar)
362079 ½ 36 30 23 25
362080 ¾ 43 36 28 25
362081 1 51 42 34 25
362082 64 54 45 25
362083 68 58 49 25
362084 2 81 70 57 25



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These bends are used for the connection of equally sized male to female malleable iron pipe or fittings at an angle of 45°.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
MLB IRN GF Bend 45 Long M x F Black 1/2"
Code
362079
Product Name
MLB IRN GF Bend 45 Long M x F Black 1/2"
List Price
£5.65
You Pay
£3.96
You Save
30%
Qty
MLB IRN GF Bend 45 Long M x F Black 3/4"
Code
362080
Product Name
MLB IRN GF Bend 45 Long M x F Black 3/4"
List Price
£8.55
You Pay
£5.99
You Save
30%
Qty
MLB IRN GF Bend 45 Long M x F Black 1"
Code
362081
Product Name
MLB IRN GF Bend 45 Long M x F Black 1"
List Price
£15.00
You Pay
£10.50
You Save
30%
Qty
MLB IRN GF Bend 45 Long M x F Black 1 1/4"
Code
362082
Product Name
MLB IRN GF Bend 45 Long M x F Black 1 1/4"
List Price
£27.30
You Pay
£19.11
You Save
30%
Qty
MLB IRN GF Bend 45 Long M x F Black 1 1/2"
Code
362083
Product Name
MLB IRN GF Bend 45 Long M x F Black 1 1/2"
List Price
£33.05
You Pay
£23.14
You Save
30%
Qty
MLB IRN GF Bend 45 Long M x F Black 2"
Code
362084
Product Name
MLB IRN GF Bend 45 Long M x F Black 2"
List Price
£52.05
You Pay
£36.44
You Save
30%
Qty
6 products
