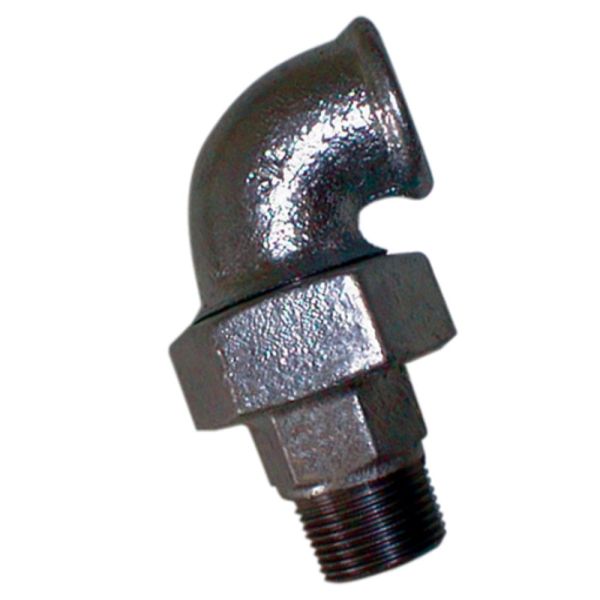

Union Elbow M x F Taper Seat 90
Useful Information
Key Features / Tech Specs:
- Material: malleable iron (black)
- Maximum operating pressure: 25 bar (362 psi)
- Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
- All thread types are male BSPT and female BSPP in accordance to IS07-1
| Product Code | Size (inch) | A (mm) | B (mm) |
| 385085 | 3/8 | 65 | 25 |
| 385086 | 1/2 | 76 | 28 |
| 385087 | 3/4 | 82 | 33 |
| 385088 | 1 | 94 | 38 |
| 385089 | 1 1/4 | 107 | 45 |
| 385090 | 1 1/2 | 115 | 50 |
| 385091 | 2 | 128 | 58 |
Useful Info:
Union Male x Female Elbows are designed to join two malleable iron pipes or fittings at an angle of 90°.
EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.
Black Iron malleable iron fittings are coated with an anti corrosion finish to protect against rust.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
