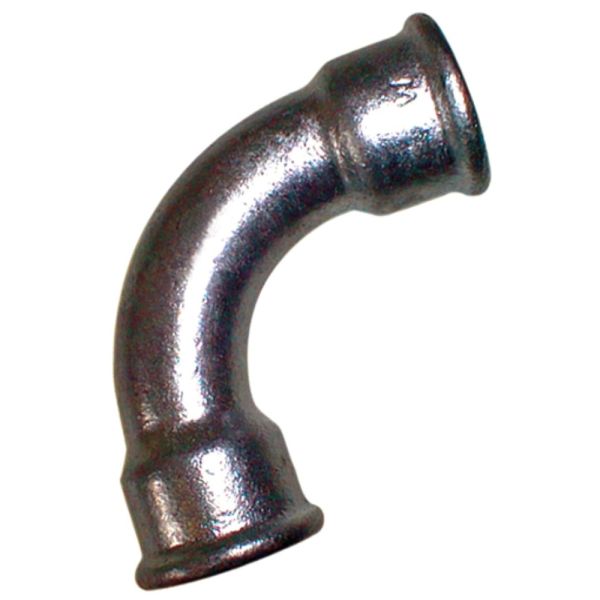

Bends 90 F Thread
Useful Information
Key Features / Tech Specs:
- Material: malleable iron (black)
- Maximum operating pressure: 25 bar (362 psi)
- Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
- All thread types are male BSPT and female BSPP in accordance to IS07-1
| Product Code | Size (inch) | A (mm) |
| 384957 | 1/4 | 40 |
| 384958 | 3/8 | 48 |
| 384959 | 1/2 | 55 |
| 384960 | 3/4 | 69 |
| 384961 | 1 | 85 |
| 384962 | 1 1/4 | 105 |
| 384963 | 1 1/2 | 116 |
| 384964 | 2 | 140 |
Useful Info:
Female bends are designed to join two malleable iron pipes or fittings at an angle of 90°.
EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.
Black Iron malleable iron fittings are coated with an anti corrosion finish to protect against rust.
