Bush

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ¼" x ⅛" to 4" x 3"

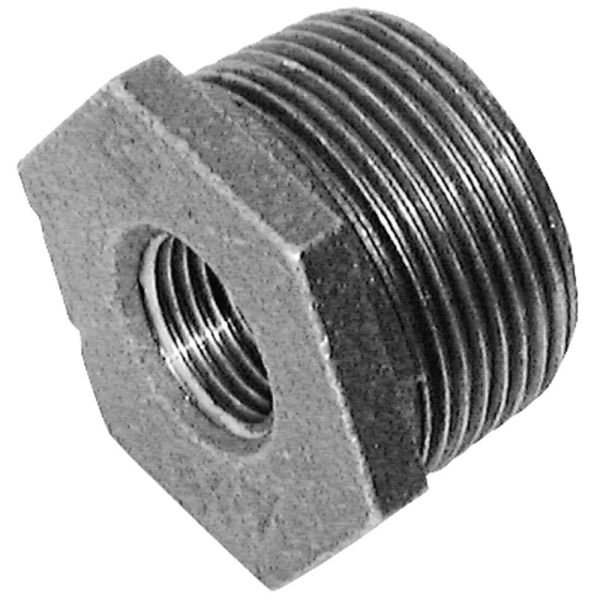

Malleable Iron Reducing Bush

Product Code Diameter (inch) A (mm) F (mm) Weight (kg)
363620 ¼ x ⅛ 14 16 0.011
363621 ⅜ x ⅛ 19 19 0.025
363622 ⅜ x ¼ 19 19 0.016
363623 ½ x ⅛ 24 24 0.044
363624 ½ x ¼ 24 24 0.037
363625 ½ x ⅜ 24 24 0.032
363626 ¾ x ⅛ 26 30 0.077
363627 ¾ x ¼ 26 30 0.071
363628 ¾ x ⅜ 26 30 0.065
363629 ¾ x ½ 26 30 0.053
363630 1 x ¼ 29 36 0.118
363631 1 x ⅜ 29 36 0.122
363632 1 x ½ 29 36 0.106
363633 1 x ¾ 29 36 0.082
363634 1 ¼ x ½ 31 46 0.202
363635 1 ¼ x ¾ 31 46 0.177
363636 1 ¼ x 1 31 46 0.140
363638 1 ½ x ⅜ 31 52 -
363639 1 ½ x ½ 31 52 0.254
363640 1 ½ x ¾ 31 52 0.242
363641 1 ½ x 1 31 52 0.210
363642 1 ½ x 1 ¼ 31 52 0.143
363643 2 x ½ 35 64 0.369
363644 2 x ¾ 35 64 0.374
363645 2 x 1 35 64 0.403
363646 2 x 1 ¼ 35 64 0.354
363647 2 x 1 ½ 35 64 0.300
363648 2 ½ x ½ 40 79 0.624
363649 2 ½ x ¾ 40 79 -
363650 2 ½ x 1 40 79 0.614
363651 2 ½ x 1 ¼ 40 79 0.630
363652 2 ½ x 1 ½ 40 79 0.663
363653 2 ½ x 2 40 79 0.495
363654 3 x 1 ¼ 44 93 0.876
363655 3 x 1 ½ 44 93 0.925
363656 3 x 2 44 93 0.923
363657 3 x 2 ½ 44 93 0.630
363658 4 x 1 ¼ 51 118 1.484
363659 4 x 2 51 118 1.584
363660 4 x 2 ½ 51 118 1.617
363661 4 x 3 51 118 1.443



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363620MLB IRN CR Reducing Bush Galv. 1/4" x 1/8" £5.20 33% £3.48
363621MLB IRN CR Reducing Bush Galv. 3/8" x 1/8" £5.55 33% £3.72
363622MLB IRN CR Reducing Bush Galv. 3/8" x 1/4" £4.60 33% £3.08
363623MLB IRN CR Reducing Bush Galv. 1/2" x 1/8" £5.10 33% £3.42
363624MLB IRN CR Reducing Bush Galv. 1/2" x 1/4" £3.05 33% £2.04
363625MLB IRN CR Reducing Bush Galv. 1/2" x 3/8" £3.35 33% £2.24
363626MLB IRN CR Reducing Bush Galv. 3/4" x 1/8" £8.05 33% £5.39
363627MLB IRN CR Reducing Bush Galv. 3/4" x 1/4" £6.30 33% £4.22
363628MLB IRN CR Reducing Bush Galv. 3/4" x 3/8" £5.10 33% £3.42
363629MLB IRN CR Reducing Bush Galv. 3/4" x 1/2" £3.85 33% £2.58
363630MLB IRN CR Reducing Bush Galv. 1" x 1/4" £9.05 33% £6.06
363631MLB IRN CR Reducing Bush Galv. 1" x 3/8" £8.35 33% £5.59
363632MLB IRN CR Reducing Bush Galv. 1" x 1/2" £5.25 33% £3.52
363633MLB IRN CR Reducing Bush Galv. 1" x 3/4" £4.95 33% £3.32
363634MLB IRN CR Reducing Bush Galv. 1 1/4" x 1/2" £10.95 33% £7.34
363635MLB IRN CR Reducing Bush Galv. 1 1/4" x 3/4" £9.85 33% £6.60
363636MLB IRN CR Reducing Bush Galv. 1 1/4" x 1" £6.60 33% £4.42
363638MLB IRN CR Reducing Bush Galv. 1 1/2" x 3/8" £23.25 33% £15.58
363639MLB IRN CR Reducing Bush Galv. 1 1/2" x 1/2" £14.00 33% £9.38
363640MLB IRN CR Reducing Bush Galv. 1 1/2" x 3/4" £15.20 33% £10.18
363641MLB IRN CR Reducing Bush Galv. 1 1/2" x 1" £10.00 33% £6.70
363642MLB IRN CR Reducing Bush Galv. 1 1/2" x 1 1/4" £10.60 33% £7.10
363643MLB IRN CR Reducing Bush Galv. 2" x 1/2" £28.65 33% £19.20
363644MLB IRN CR Reducing Bush Galv. 2" x 3/4" £27.95 33% £18.73
363645MLB IRN CR Reducing Bush Galv. 2" x 1" £21.15 33% £14.17
363646MLB IRN CR Reducing Bush Galv. 2" x 1 1/4" £21.90 33% £14.67
363647MLB IRN CR Reducing Bush Galv. 2" x 1 1/2" £19.70 33% £13.20
363648MLB IRN CR Reducing Bush Galv. 2 1/2" x 1/2" £44.30 33% £29.68
363649MLB IRN CR Reducing Bush Galv. 2 1/2" x 3/4" £43.85 33% £29.38
363650MLB IRN CR Reducing Bush Galv. 2 1/2" x 1" £44.30 33% £29.68
363651MLB IRN CR Reducing Bush Galv. 2 1/2" x 1 1/4" £44.30 33% £29.68
363652MLB IRN CR Reducing Bush Galv. 2 1/2" x 1 1/2" £44.30 33% £29.68
363653MLB IRN CR Reducing Bush Galv. 2 1/2" x 2" £36.20 33% £24.25
363654MLB IRN CR Reducing Bush Galv. 3" x 1" £69.40 33% £46.50
363655MLB IRN CR Reducing Bush Galv. 3" x 1 1/2" £67.35 33% £45.12
363656MLB IRN CR Reducing Bush Galv. 3" x 2" £54.55 33% £36.55
363657MLB IRN CR Reducing Bush Galv. 3" x 2 1/2" £53.55 33% £35.88
363658MLB IRN CR Reducing Bush Galv. 4" x 1 1/4" £143.40 33% £96.08
363659MLB IRN CR Reducing Bush Galv. 4" x 2" £126.40 33% £84.69
363660MLB IRN CR Reducing Bush Galv. 4" x 2 1/2" £126.40 33% £84.69
363661MLB IRN CR Reducing Bush Galv. 4" x 3" £105.15 33% £70.45
