Union Male x Female

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Male x female BSPT thread
  • EN 10226-2
  • Sizes available: ½" to 3"

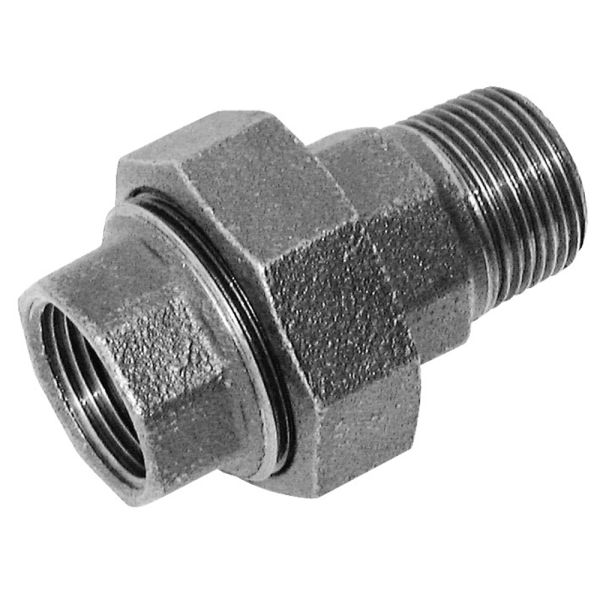

Malleable Iron Male x Female Union

Product Code Diameter (inch) A (mm) F (mm) Weight (kg)
363143 ½ 68 42 0.259
363144 ¾ 91 68 0.368
363145 1 82 57 0.506
363146 1 ½ 95 76 1.000
363147 2 104 92 1.478
363149 3 131 125 3.247



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363143MLB IRN CR Union M x F Galv. 1/2" £20.70 33% £13.87
363144MLB IRN CR Union M x F Galv. 3/4" £25.40 33% £17.02
363145MLB IRN CR Union M x F Galv. 1" £29.45 33% £19.73
363146MLB IRN CR Union M x F Galv. 1 1/2" £66.60 33% £44.62
363147MLB IRN CR Union M x F Galv. 2" £104.85 33% £70.25
363149MLB IRN CR Union M x F Galv. 3" £322.25 33% £215.91
