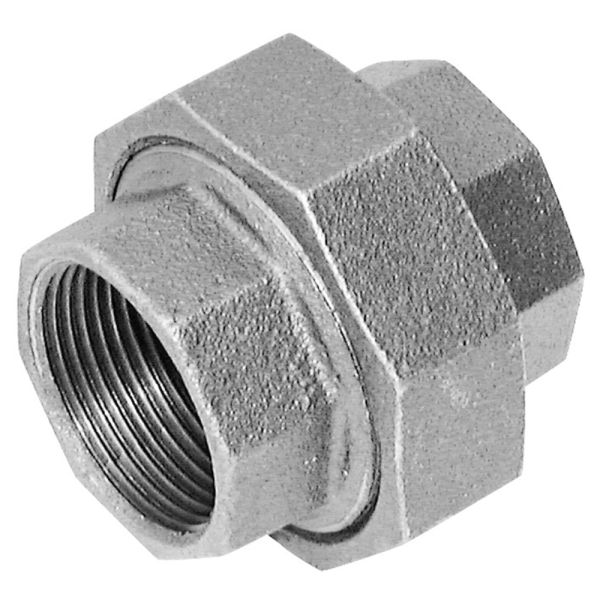

Union Female Bronze to Bronze

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable bronze to bronze (galvanised)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ½" to 3"

Malleable Iron Flat Seat Union

Product Code Diameter (inch) A (mm) F (mm) Weight (kg)
363210 ½ 49 42 0.210
363211 ¾ 53 49 0.304
363212 1 58 57 0.410
363213 1 ½ 68 76 0.798
363214 2 75 92 1.215
363215 3 92 125 2.480



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363210MLB IRN CR Union Female Bronze x Bronze Galv. 1/2" £47.25 33% £31.66
363211MLB IRN CR Union Female Bronze x Bronze Galv. 3/4" £56.15 33% £37.62
363212MLB IRN CR Union Female Bronze x Bronze Galv. 1" £68.85 33% £46.13
363213MLB IRN CR Union Female Bronze x Bronze Galv. 1 1/2" £139.60 33% £93.53
363214MLB IRN CR Union Female Bronze x Bronze Galv. 2" £164.80 33% £110.42
363215MLB IRN CR Union Female Bronze x Bronze Galv. 3" £604.05 33% £404.71
