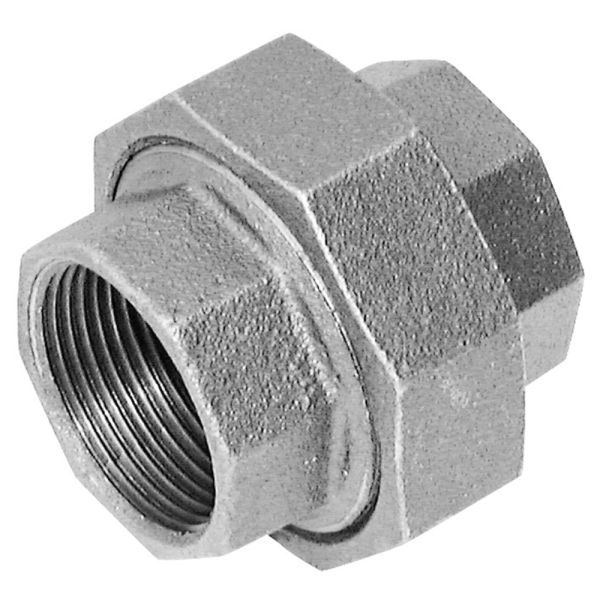

Union Female

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ¼" to 4"

Malleable Iron Flat Seat Union

Product Code Diameter (inch) A (mm) F (mm) Weight (kg)
363160 ¼ 42 32 0.111
363161 45 36 0.137
363162 ½ 49 42 0.207
363163 ¾ 53 49 0.300
363164 1 58 57 0.407
363165 1 ¼ 64 68 0.606
363166 1 ½ 68 76 0.784
363167 2 75 92 1.199
363168 2 ½ 84 111 1.871
363169 3 92 125 2.483
363170 4 107 155 4.265



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363160MLB IRN CR Union Female Galv. 1/4" £25.80 33% £17.29
363161MLB IRN CR Union Female Galv. 3/8" £23.05 33% £15.44
363162MLB IRN CR Union Female Galv. 1/2" £19.70 33% £13.20
363163MLB IRN CR Union Female Galv. 3/4" £21.60 33% £14.47
363164MLB IRN CR Union Female Galv. 1" £25.30 33% £16.95
363165MLB IRN CR Union Female Galv. 1 1/4" £43.55 33% £29.18
363166MLB IRN CR Union Female Galv. 1 1/2" £49.10 33% £32.90
363167MLB IRN CR Union Female Galv. 2" £73.35 33% £49.14
363168MLB IRN CR Union Female Galv. 2 1/2" £187.65 33% £125.73
363169MLB IRN CR Union Female Galv. 3" £254.20 33% £170.31
363170MLB IRN CR Union Female Galv. 4" £483.90 33% £324.21
