Socket BSPT

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ¼" to 4"

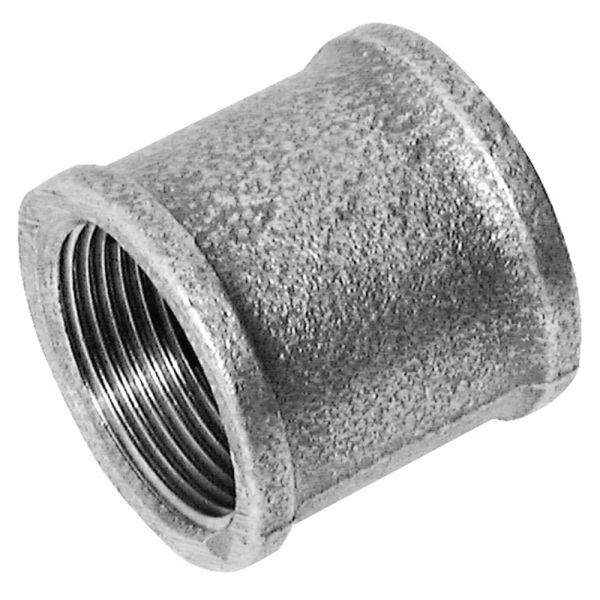

Malleable Iron Socket

Product Code Diameter (inch) A (mm) Weight (kg)
363497 ¼ 27 0.032
363498 30 0.040
363499 ½ 34 0.083
363500 ¾ 39 0.123
363501 1 42 0.200
363502 1 ¼ 49 0.221
363503 1 ½ 54 0.311
363504 2 64 0.502
363505 2 ½ 73 0.948
363506 4 94 2.150



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363497MLB IRN CR Socket BSPT Galv. 1/4" £4.60 33% £3.08
363498MLB IRN CR Socket BSPT Galv. 3/8" £4.60 33% £3.08
363499MLB IRN CR Socket BSPT Galv. 1/2" £4.30 33% £2.88
363500MLB IRN CR Socket BSPT Galv. 3/4" £5.55 33% £3.72
363501MLB IRN CR Socket BSPT Galv. 1" £7.15 33% £4.79
363502MLB IRN CR Socket BSPT Galv. 1 1/4" £15.85 33% £10.62
363503MLB IRN CR Socket BSPT Galv. 1 1/2" £21.35 33% £14.30
363504MLB IRN CR Socket BSPT Galv. 2" £30.75 33% £20.60
363505MLB IRN CR Socket BSPT Galv. 2 1/2" £50.20 33% £33.63
363506MLB IRN CR Socket BSPT Galv. 4" £117.30 33% £78.59
