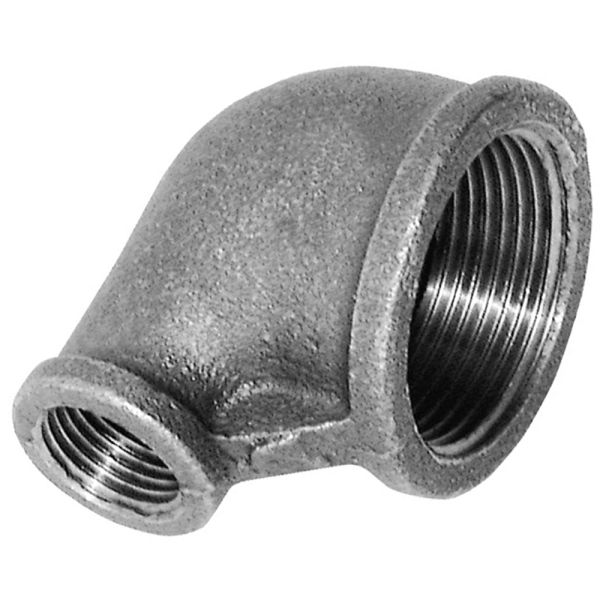

Reducing Elbow 90 Female

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ½" x ¼" to 2" x 1"

Malleable Iron Elbow 90°

Product Code Diameter (inch) A (mm) B (mm) Weight (kg)
363059 ½ x ¼ 25 25 0.080
363060 ¾ x ½ 26 26 0.091
363061 1 x ½ 32 34 0.186
363062 1 x ¾ 35 36 0.220
363063 1 ¼ x ½ 36 41 0.268
363064 1 ¼ x ¾ 36 41 0.247
363065 1 ¼ x 1 42 46 0.320
363066 1 ½ x 1 42 46 0.397
363067 2 x 1 44 51 0.487



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363059MLB IRN CR Reducing Elbow 90 Female Galv. 1/2" x 1/4" £13.65 33% £9.15
363060MLB IRN CR Reducing Elbow 90 Female Galv. 3/4" x 1/2" £8.70 33% £5.83
363061MLB IRN CR Reducing Elbow 90 Female Galv. 1" x 1/2" £10.90 33% £7.30
363062MLB IRN CR Reducing Elbow 90 Female Galv. 1" x 3/4" £12.90 33% £8.64
363063MLB IRN CR Reducing Elbow 90 Female Galv. 1 1/4" x 1/2" £21.35 33% £14.30
363064MLB IRN CR Reducing Elbow 90 Female Galv. 1 1/4" x 3/4" £29.20 33% £19.56
363065MLB IRN CR Reducing Elbow 90 Female Galv. 1 1/4" x 1" £21.35 33% £14.30
363066MLB IRN CR Reducing Elbow 90 Female Galv. 1 1/2" x 1" £33.10 33% £22.18
363067MLB IRN CR Reducing Elbow 90 Female Galv. 2" x 1" £58.30 33% £39.06
