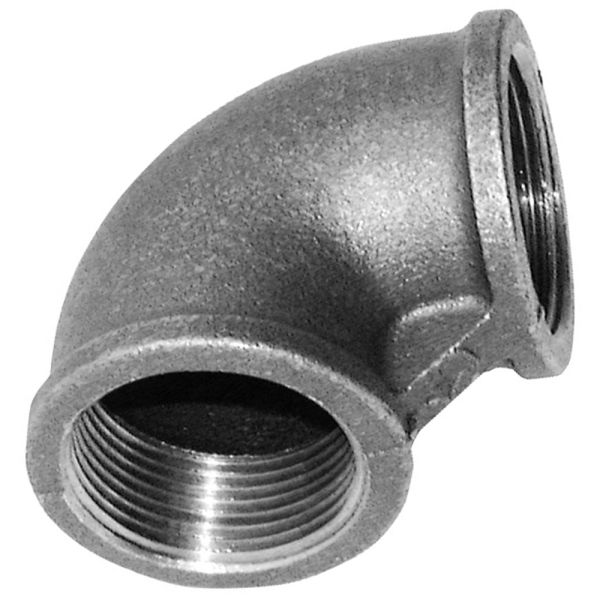

Elbow 90 Female

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ⅛" to 4"

Malleable Iron Elbow 90°

Product Code Diameter (inch) A (mm) B (mm) Weight (kg)
363031 19 19 0.033
363032 ¼ 21 21 0.051
363033 25 25 0.084
363034 ½ 28 28 0.084
363035 ¾ 33 33 0.135
363036 1 38 38 0.224
363037 1 ¼ 45 45 0.349
363038 1 ½ 50 50 0.441
363039 2 58 58 0.713
363040 2 ½ 69 69 1.384
363041 3 78 78 1.906
363042 4 96 96 3.532



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363031MLB IRN CR Elbow 90 Female Galv. 1/8" £7.70 33% £5.16
363032MLB IRN CR Elbow 90 Female Galv. 1/4" £5.10 33% £3.42
363033MLB IRN CR Elbow 90 Female Galv. 3/8" £5.10 33% £3.42
363034MLB IRN CR Elbow 90 Female Galv. 1/2" £4.40 33% £2.95
363035MLB IRN CR Elbow 90 Female Galv. 3/4" £6.05 33% £4.05
363036MLB IRN CR Elbow 90 Female Galv. 1" £9.40 33% £6.30
363037MLB IRN CR Elbow 90 Female Galv. 1 1/4" £19.45 33% £13.03
363038MLB IRN CR Elbow 90 Female Galv. 1 1/2" £29.20 33% £19.56
363039MLB IRN CR Elbow 90 Female Galv. 2" £34.25 33% £22.95
363040MLB IRN CR Elbow 90 Female Galv. 2 1/2" £76.20 33% £51.05
363041MLB IRN CR Elbow 90 Female Galv. 3" £111.85 33% £74.94
363042MLB IRN CR Elbow 90 Female Galv. 4" £192.15 33% £128.74
