Elbow 45 Male x Female

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Male x female BSPT thread
  • EN 10226-2
  • Sizes available: 1/2" to 4"

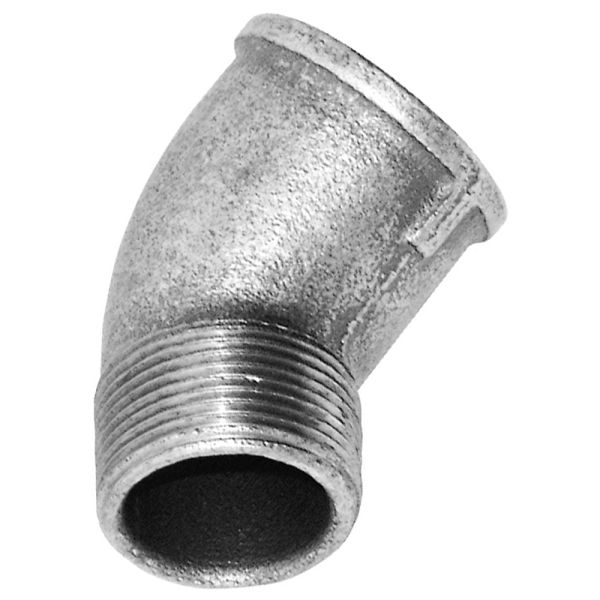

Malleable Iron Male x Female Elbow 45°

Product Code Diameter (inch) A (mm) B (mm) Weight (kg)
363106 ½ 22 28 0.073
363107 ¾ 29 29 0.121
363108 1 35 35 0.166
363109 1 ¼ 42 42 0.280
363110 1 ½ 48 48 0.380
363111 2 55 55 0.620
363112 3 68 68 1.390
363113 4 87 87 2.876



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363106MLB IRN CR Elbow 45 M x F Galv. 1/2" £11.70 33% £7.84
363107MLB IRN CR Elbow 45 M x F Galv. 3/4" £15.35 33% £10.28
363108MLB IRN CR Elbow 45 M x F Galv. 1" £23.05 33% £15.44
363109MLB IRN CR Elbow 45 M x F Galv. 1 1/4" £48.10 33% £32.23
363110MLB IRN CR Elbow 45 M x F Galv. 1 1/2" £51.25 33% £34.34
363111MLB IRN CR Elbow 45 M x F Galv. 2" £73.35 33% £49.14
363112MLB IRN CR Elbow 45 M x F Galv. 3" £165.85 33% £111.12
363113MLB IRN CR Elbow 45 M x F Galv. 4" £383.75 33% £257.11
