Elbow 45 Female

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ⅜" to 4"

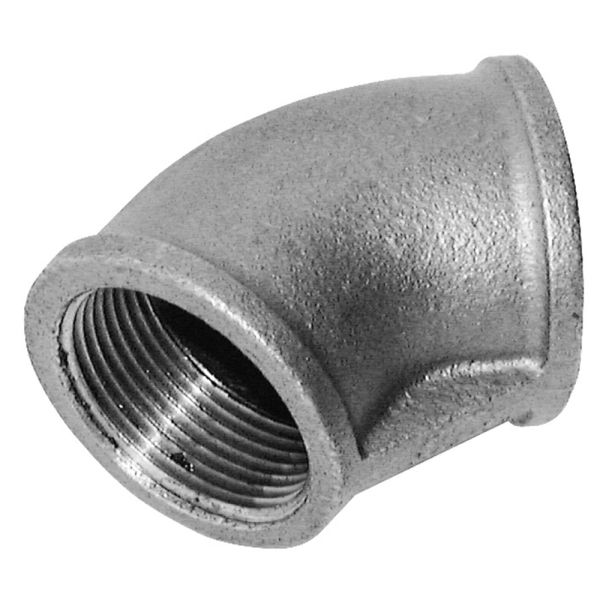

Malleable Iron Elbow 45°

Product Code Diameter (inch) A (mm) Weight (kg)
363126 - -
363127 ½ 22 0.081
363128 ¾ 25 0.115
363129 1 28 0.177
363130 1 ¼ 33 0.299
363131 1 ½ 36 0.402
363132 2 43 0.653
363133 2 ½ 50 0.945
363134 3 55 1.580
363135 4 66 2.496



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363126MLB IRN CR Elbow 45 Female Galv. 3/8" £13.95 33% £9.35
363127MLB IRN CR Elbow 45 Female Galv. 1/2" £11.35 33% £7.60
363128MLB IRN CR Elbow 45 Female Galv. 3/4" £14.05 33% £9.41
363129MLB IRN CR Elbow 45 Female Galv. 1" £19.25 33% £12.90
363130MLB IRN CR Elbow 45 Female Galv. 1 1/4" £44.95 33% £30.12
363131MLB IRN CR Elbow 45 Female Galv. 1 1/2" £52.80 33% £35.38
363132MLB IRN CR Elbow 45 Female Galv. 2" £72.30 33% £48.44
363133MLB IRN CR Elbow 45 Female Galv. 2 1/2" £101.75 33% £68.17
363134MLB IRN CR Elbow 45 Female Galv. 3" £156.75 33% £105.02
363135MLB IRN CR Elbow 45 Female Galv. 4" £302.80 33% £202.88
