Bend 90 Male x Female

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Male x female BSPT thread
  • EN 10226-2
  • Sizes available: ¼" to 4"

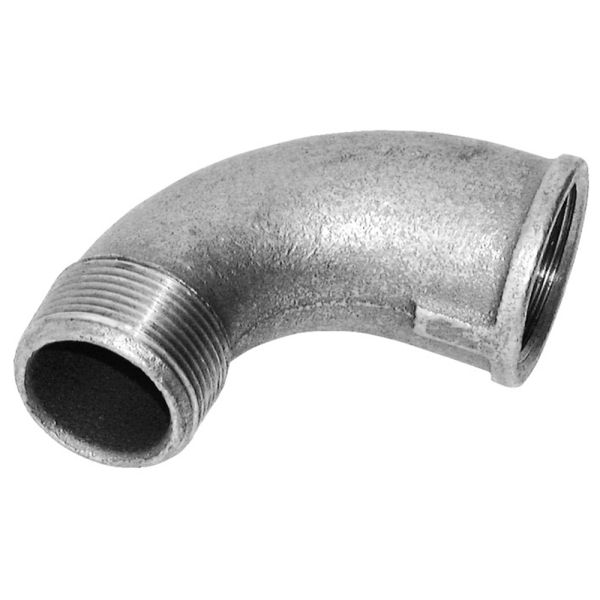

Malleable Iron 90° Male x Female Bend

Product Code Diameter (inch) A (mm) Weight (kg)
362974 ¼ - -
362975 - -
362976 ½ 45 0.101
362977 ¾ 50 0.160
362978 1 63 0.267
362979 1 ¼ 76 0.505
362980 1 ½ 85 0.696
362981 2 102 1.086
362982 2 ½ 114 1.588
362983 3 127 2.396
362984 4 165 4.675



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362974MLB IRN CR Bend 90 M x F Galv. 1/4" £10.30 33% £6.90
362975MLB IRN CR Bend 90 M x F Galv. 3/8" £12.30 33% £8.24
362976MLB IRN CR Bend 90 M x F Galv. 1/2" £8.70 33% £5.83
362977MLB IRN CR Bend 90 M x F Galv. 3/4" £14.30 33% £9.58
362978MLB IRN CR Bend 90 M x F Galv. 1" £20.10 33% £13.47
362979MLB IRN CR Bend 90 M x F Galv. 1 1/4" £33.85 33% £22.68
362980MLB IRN CR Bend 90 M x F Galv. 1 1/2" £49.75 33% £33.33
362981MLB IRN CR Bend 90 M x F Galv. 2" £93.35 33% £62.54
362982MLB IRN CR Bend 90 M x F Galv. 2 1/2" £142.90 33% £95.74
362983MLB IRN CR Bend 90 M x F Galv. 3" £220.00 33% £147.40
362984MLB IRN CR Bend 90 M x F Galv. 4" £544.95 33% £365.12
