Bend 90 Female

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ¼" to 4"

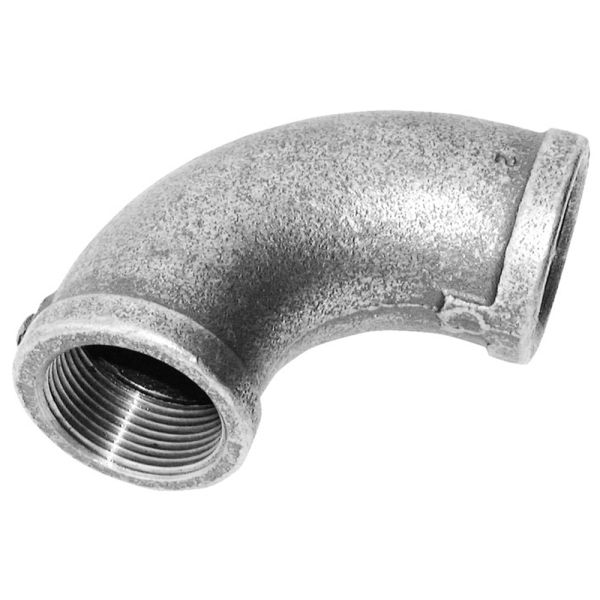

Malleable Iron 90° Female Bend

Product Code Diameter (inch) A (mm) Weight (kg)
362995 ¼ - -
362996 - -
362997 ½ 45 0.134
362998 ¾ 50 0.192
362999 1 63 0.318
363000 1 ¼ 76 0.617
363001 1 ½ 85 0.792
363002 2 102 1.266
363003 2 ½ 114 1.667
363004 3 127 2.525
363005 4 165 4.853



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362995MLB IRN CR Bend 90 Female Galv. 1/4" £12.30 33% £8.24
362996MLB IRN CR Bend 90 Female Galv. 3/8" £9.05 33% £6.06
362997MLB IRN CR Bend 90 Female Galv. 1/2" £8.95 33% £6.00
362998MLB IRN CR Bend 90 Female Galv. 3/4" £12.80 33% £8.58
362999MLB IRN CR Bend 90 Female Galv. 1" £17.85 33% £11.96
363000MLB IRN CR Bend 90 Female Galv. 1 1/4" £34.75 33% £23.28
363001MLB IRN CR Bend 90 Female Galv. 1 1/2" £41.40 33% £27.74
363002MLB IRN CR Bend 90 Female Galv. 2" £65.30 33% £43.75
363003MLB IRN CR Bend 90 Female Galv. 2 1/2" £142.90 33% £95.74
363004MLB IRN CR Bend 90 Female Galv. 3" £211.90 33% £141.97
363005MLB IRN CR Bend 90 Female Galv. 4" £444.55 33% £297.85
