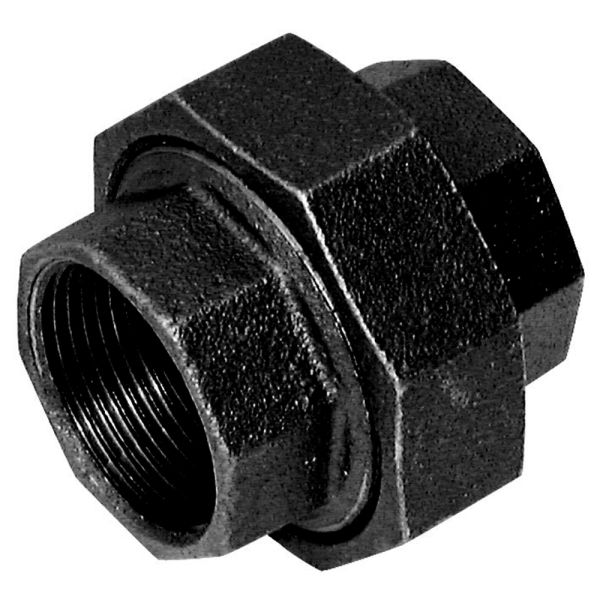

Union F Thread
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (black)
- Female BSPT thread
- EN 10226-2
- Sizes available: ¼" to 3"
| Product Code | Diameter (inch) | A (mm) | F (mm) | Weight (kg) |
| 363150 | ¼ | 42 | 32 | 0.111 |
| 363151 | ⅜ | 45 | 36 | 0.137 |
| 363152 | ½ | 49 | 42 | 0.207 |
| 363153 | ¾ | 53 | 49 | 0.300 |
| 363154 | 1 | 58 | 57 | 0.407 |
| 363155 | 1 ¼ | 64 | 68 | 0.606 |
| 363156 | 1 ½ | 68 | 76 | 0.784 |
| 363157 | 2 | 75 | 92 | 1.199 |
| 363158 | 2 ½ | 84 | 111 | 1.871 |
| 363159 | 3 | 92 | 125 | 2.483 |
