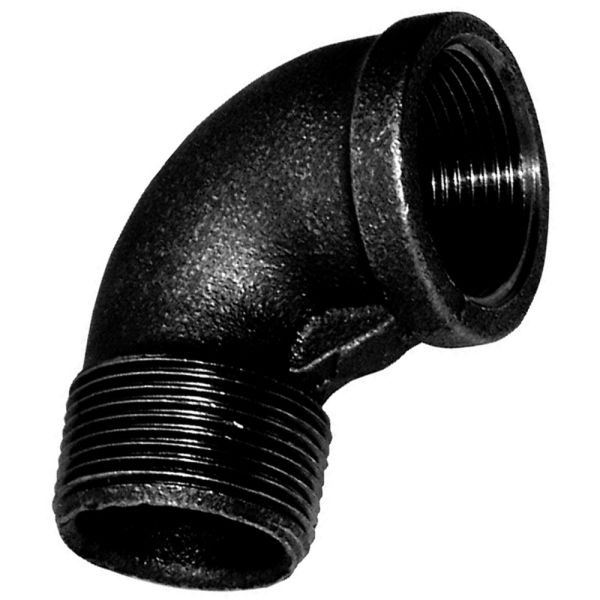

Elbow 90 Male x Female

Elbow 90 Male x Female

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Male x female BSPT thread
  • EN 10226-2
  • Sizes available: ⅛" to 3"

Malleable Iron Male x Female Elbow 90°

Product Code Diameter (inch) A (mm) B (mm) Weight (kg)
363074 19 25 0.026
363075 ¼ 21 28 0.040
363076 25 32 0.061
363077 ½ 28 37 0.090
363078 ¾ 33 43 0.133
363079 1 38 52 0.230
363080 1 ¼ 45 60 0.351
363081 1 ½ 50 68 0.484
363082 2 58 74 0.781
363083 2 ½ 69 88 1.156
363084 3 78 98 1.647



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
MLB IRN CR Elbow 90 M x F Black 1/8"
Code
363074
Product Name
MLB IRN CR Elbow 90 M x F Black 1/8"
List Price
£4.40
You Pay
£2.95
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 1/4"
Code
363075
Product Name
MLB IRN CR Elbow 90 M x F Black 1/4"
List Price
£2.85
You Pay
£1.91
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 3/8"
Code
363076
Product Name
MLB IRN CR Elbow 90 M x F Black 3/8"
List Price
£3.20
You Pay
£2.14
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 1/2"
Code
363077
Product Name
MLB IRN CR Elbow 90 M x F Black 1/2"
List Price
£2.75
You Pay
£1.84
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 3/4"
Code
363078
Product Name
MLB IRN CR Elbow 90 M x F Black 3/4"
List Price
£3.60
You Pay
£2.41
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 1"
Code
363079
Product Name
MLB IRN CR Elbow 90 M x F Black 1"
List Price
£6.00
You Pay
£4.02
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 1 1/4"
Code
363080
Product Name
MLB IRN CR Elbow 90 M x F Black 1 1/4"
List Price
£10.50
You Pay
£7.04
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 1 1/2"
Code
363081
Product Name
MLB IRN CR Elbow 90 M x F Black 1 1/2"
List Price
£17.70
You Pay
£11.86
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 2"
Code
363082
Product Name
MLB IRN CR Elbow 90 M x F Black 2"
List Price
£22.80
You Pay
£15.28
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 2 1/2"
Code
363083
Product Name
MLB IRN CR Elbow 90 M x F Black 2 1/2"
List Price
£49.20
You Pay
£32.96
You Save
33%
Qty
MLB IRN CR Elbow 90 M x F Black 3"
Code
363084
Product Name
MLB IRN CR Elbow 90 M x F Black 3"
List Price
£85.60
You Pay
£57.35
You Save
33%
Qty
11 products
