Elbow 45 F Thread

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ½" to 3"

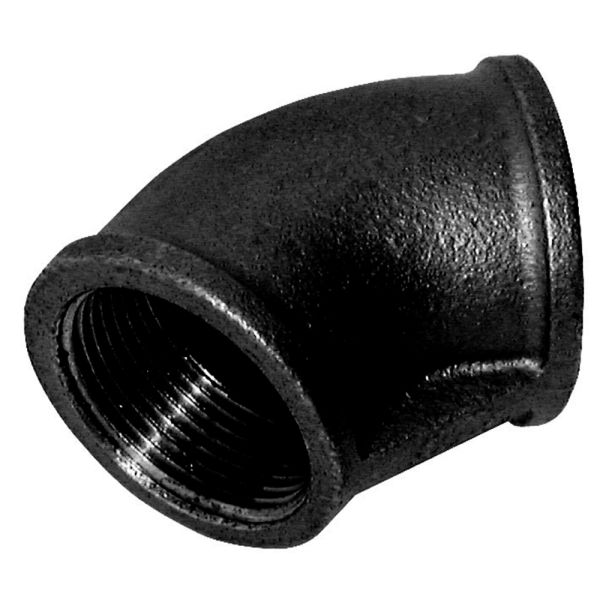

Malleable Iron Elbow 45°

Product Code Diameter (inch) A (mm) Weight (kg)
363119 ½ 22 0.081
363120 ¾ 25 0.115
363121 1 28 0.177
363122 1 ¼ 33 0.299
363123 1 ½ 36 0.402
363124 2 43 0.653
363125 3 55 1.580



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363119MLB IRN CR Elbow 45 Female Black 1/2" £6.05 33% £4.05
363120MLB IRN CR Elbow 45 Female Black 3/4" £7.45 33% £4.99
363121MLB IRN CR Elbow 45 Female Black 1" £10.90 33% £7.30
363122MLB IRN CR Elbow 45 Female Black 1 1/4" £21.50 33% £14.41
363123MLB IRN CR Elbow 45 Female Black 1 1/2" £26.30 33% £17.62
363124MLB IRN CR Elbow 45 Female Black 2" £36.15 33% £24.22
363125MLB IRN CR Elbow 45 Female Black 3" £100.95 33% £67.64
