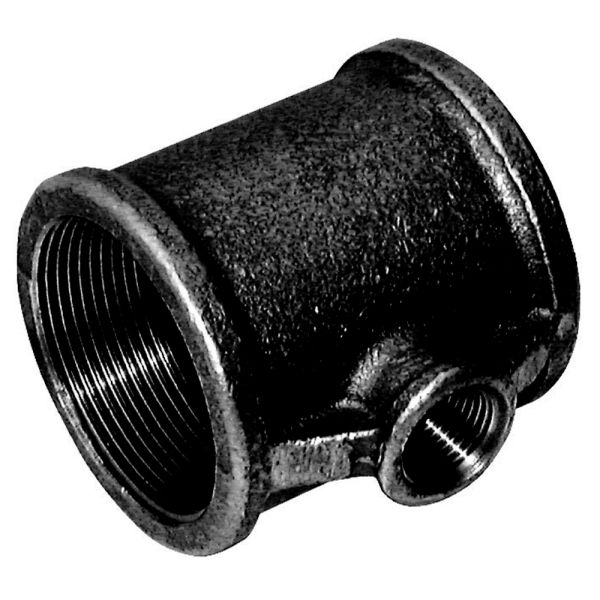

Reducing Tee 90
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (black)
- Female BSPT thread
- BS EN 10242
- Sizes available: ⅜ x ¼ to 4" x 2"
- Reduces on branch
| Product Code | Diameter (inch) | Branch Diameter (inch) | A (mm) | B (mm) | Weight (kg) |
| 363326 | ⅜ | ¼ | 23 | 23 | 0.100 |
| 363327 | ¾ | ¼ | 26 | 27 | 0.122 |
| 363328 | ¾ | ⅜ | 28 | 28 | 0.124 |
| 363329 | 1 | ½ | 32 | 34 | 0.217 |
| 363330 | 1 | ¾ | 35 | 36 | 0.315 |
| 363331 | 1 ¼ | ½ | 34 | 38 | 0.301 |
| 363332 | 1 ¼ | 1 | 40 | 42 | 0.422 |
| 363333 | 1 ½ | ½ | 36 | 42 | 0.454 |
| 363334 | 1 ½ | ¾ | 38 | 44 | 0.426 |
| 363335 | 1 ½ | 1 | 42 | 46 | 0.507 |
| 363336 | 1 ½ | 1 ¼ | 46 | 48 | 0.615 |
| 363337 | 2 | 1 | 44 | 52 | 0.683 |
| 363338 | 2 | 1 ¼ | 48 | 54 | 0.737 |
| 363339 | 2 ½ | ½ | 41 | 57 | 1.038 |
| 363340 | 3 | ¾ | - | - | - |
| 363341 | 3 | 2 ½ | 72 | 76 | 1.907 |
| 363342 | 4 | 2 | 70 | 86 | 2.428 |
