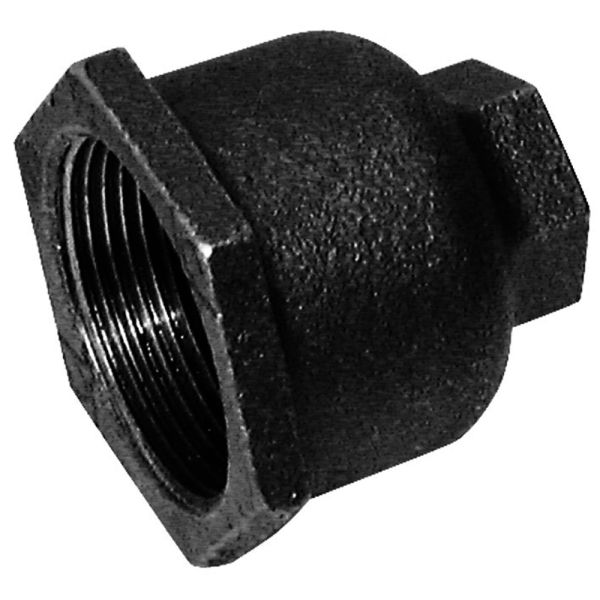

Reducing Socket
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (black)
- Female BSPT thread
- EN 10226-2
- Sizes available: ⅜" x ¼" to 4" x 2 ½"
| Product Code | Diameter (inch) | A (mm) | Weight (kg) |
| 363525 | ⅜ x ¼ | 29 | 0.047 |
| 363526 | ½ x ¼ | 32 | 0.079 |
| 363527 | ½ x ⅜ | 32 | 0.079 |
| 363528 | ¾ x ¼ | 37 | 0.120 |
| 363529 | ¾ x ⅜ | 37 | 0.120 |
| 363530 | ¾ x ½ | 37 | 0.120 |
| 363532 | 1 x ½ | 43 | 0.183 |
| 363533 | 1 x ¾ | 52 | 0.183 |
| 363534 | 1 ¼ x ½ | 52 | 0.285 |
| 363535 | 1 ¼ x 1 | 50 | 0.285 |
| 363536 | 1 ½ x ¾ | 59 | 0.305 |
| 363537 | 1 ½ x 1 | 59 | 0.305 |
| 363538 | 1 ½ x 1 ¼ | 55 | 0.305 |
| 363539 | 2 x ¾ | 71 | 0.482 |
| 363540 | 2 x 1 | 71 | 0.482 |
| 363541 | 2 x 1 ¼ | 65 | 0.482 |
| 363542 | 2 x 1 ½ | 71 | 0.482 |
| 363543 | 2 ½ x 1 ½ | 83 | 0.730 |
| 363544 | 2 ½ x 2 | 83 | 0.730 |
| 363545 | 3 x 1 | 94 | 0.985 |
| 363546 | 3 x 2 | 94 | 0.985 |
| 363547 | 3 x 2 ½ | 94 | 0.985 |
| 363548 | 4 x 2 | 111 | 1.786 |
| 363549 | 4 x 2 ½ | 111 | 1.786 |
