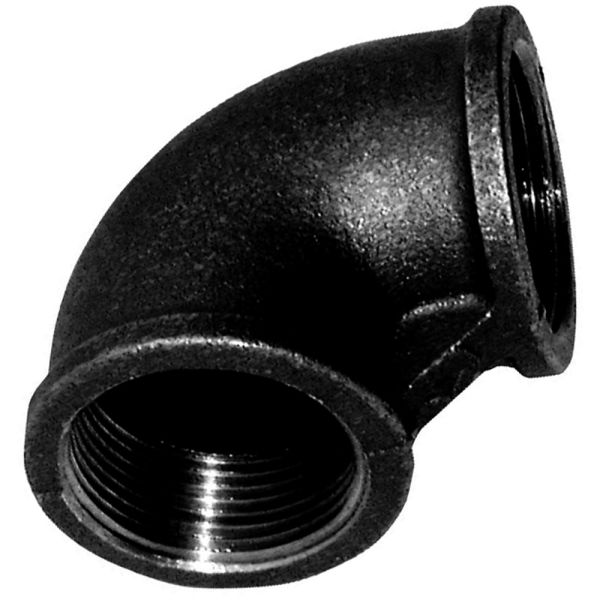

Elbow 90 F Thread

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs & Dimensions:

Material: malleable iron (black)
Female BSPT thread
EN 10226-2
Sizes available: ⅛" to 4"

Product Code	Diameter (inch)	A (mm)	B (mm)	Weight (kg)
363019	⅛	19	19	0.033
363020	¼	21	21	0.051
363021	⅜	25	25	0.084
363022	½	28	28	0.084
363023	¾	33	33	0.135
363024	1	38	38	0.224
363025	1 ¼	45	45	0.349
363026	1 ½	50	50	0.441
363027	2	58	58	0.713
363028	2 ½	69	69	1.384
363029	3	78	78	1.906
363030	4	96	96	3.532

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
363019	MLB IRN CR Elbow 90 Female Black 1/8"	£9.16	50%	£4.58
363020	MLB IRN CR Elbow 90 Female Black 1/4"	£6.16	50%	£3.08
363021	MLB IRN CR Elbow 90 Female Black 3/8"	£6.16	50%	£3.08
363022	MLB IRN CR Elbow 90 Female Black 1/2"	£5.76	50%	£2.88
363023	MLB IRN CR Elbow 90 Female Black 3/4"	£7.88	50%	£3.94
363024	MLB IRN CR Elbow 90 Female Black 1"	£12.16	50%	£6.08
363025	MLB IRN CR Elbow 90 Female Black 1 1/4"	£21.32	50%	£10.66
363026	MLB IRN CR Elbow 90 Female Black 1 1/2"	£35.84	50%	£17.92
363027	MLB IRN CR Elbow 90 Female Black 2"	£41.92	50%	£20.96
363028	MLB IRN CR Elbow 90 Female Black 2 1/2"	£86.20	50%	£43.10
363029	MLB IRN CR Elbow 90 Female Black 3"	£133.08	50%	£66.54
363030	MLB IRN CR Elbow 90 Female Black 4"	£326.56	50%	£163.28
