Bush

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Female BSPT thread
  • EN 10226-2
  • Sizes available: ¼" x ⅛" to 4" x 3"

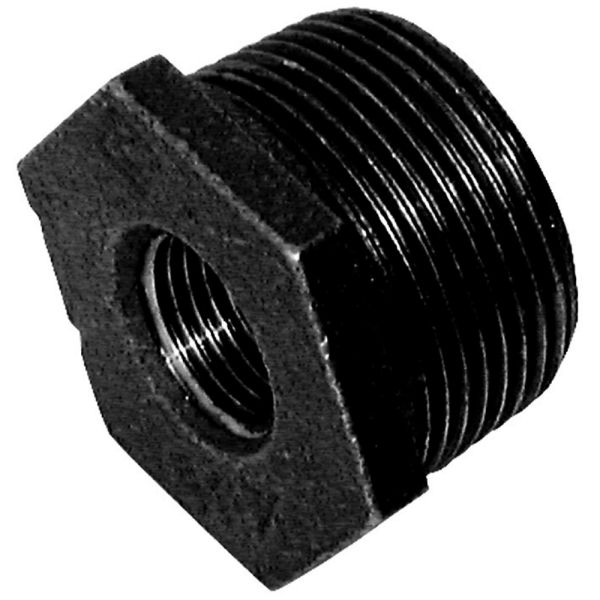

Malleable Iron Reducing Bush

Product Code Diameter (inch) A (mm) F (mm) Weight (kg)
363576 ¼ x ⅛ 14 16 0.011
363577 ⅜ x ⅛ 19 19 0.025
363578 ⅜ x ¼ 19 19 0.016
363579 ½ x ⅛ 24 24 0.044
363580 ½ x ¼ 24 24 0.037
363581 ½ x ⅜ 24 24 0.032
363582 ¾ x ⅛ 26 30 0.077
363583 ¾ x ¼ 26 30 0.071
363584 ¾ x ⅜ 26 30 0.065
363585 ¾ x ½ 26 30 0.053
363586 1 x ¼ 29 36 0.118
363587 1 x ⅜ 29 36 0.122
363588 1 x ½ 29 36 0.106
363589 1 x ¾ 29 36 0.082
363590 1 ¼ x ¼ 31 46 -
363591 1 ¼ x ⅜ 31 46 -
363592 1 ¼ x ½ 31 46 0.202
363593 1 ¼ x 1 31 46 0.140
363594 1 ½ x ¼ 31 52 -
363595 1 ½ x ⅜ 31 52 -
363596 1 ½ x ½ 31 52 0.254
363597 1 ½ x ¾ 31 52 0.242
363598 1 ½ x 1 31 52 0.210
363599 1 ½ x 1 ¼ 31 52 0.143
363600 2 x ½ 35 64 0.369
363601 2 x ¾ 35 64 0.374
363602 2 x 1 35 64 0.403
363603 2 x 1 ¼ 35 64 0.354
363604 2 x 1 ½ 35 64 0.300
363605 2 ½ x ½ 40 79 0.624
363606 2 ½ x ¾ 40 79 -
363607 2 ½ x 1 40 79 0.614
363608 2 ½ x 1 ¼ 40 79 0.630
363609 2 ½ x 1 ½ 40 79 0.663
363610 2 ½ x 2 40 79 0.495
363611 3 x 1 ¼ 44 93 0.876
363612 3 x 1 ½ 44 93 0.925
363613 3 x 2 44 93 0.923
363614 3 x 2 ½ 44 93 0.630
363615 4 x 1 51 118 1.493
363617 4 x 2 51 118 1.584
363618 4 x 2 ½ 51 118 1.617
363619 4 x 3 51 118 1.443



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363576MLB IRN CR Reducing Bush Black 1/4" x 1/8" £2.95 33% £1.98
363577MLB IRN CR Reducing Bush Black 3/8" x 1/8" £3.60 33% £2.41
363578MLB IRN CR Reducing Bush Black 3/8" x 1/4" £2.50 33% £1.68
363579MLB IRN CR Reducing Bush Black 1/2" x 1/8" £2.65 33% £1.78
363580MLB IRN CR Reducing Bush Black 1/2" x 1/4" £1.85 33% £1.24
363581MLB IRN CR Reducing Bush Black 1/2" x 3/8" £1.85 33% £1.24
363582MLB IRN CR Reducing Bush Black 3/4" x 1/8" £4.40 33% £2.95
363583MLB IRN CR Reducing Bush Black 3/4" x 1/4" £3.60 33% £2.41
363584MLB IRN CR Reducing Bush Black 3/4" x 3/8" £2.90 33% £1.94
363585MLB IRN CR Reducing Bush Black 3/4" x 1/2" £2.25 33% £1.51
363586MLB IRN CR Reducing Bush Black 1" x 1/4" £4.80 33% £3.22
363587MLB IRN CR Reducing Bush Black 1" x 3/8" £4.70 33% £3.15
363588MLB IRN CR Reducing Bush Black 1" x 1/2" £2.65 33% £1.78
363589MLB IRN CR Reducing Bush Black 1" x 3/4" £2.90 33% £1.94
363590MLB IRN CR Reducing Bush Black 1 1/4" x 1/4" £8.90 33% £5.96
363591MLB IRN CR Reducing Bush Black 1 1/4" x 3/8" £9.85 33% £6.60
363592MLB IRN CR Reducing Bush Black 1 1/4" x 3/4" £4.90 33% £3.28
363593MLB IRN CR Reducing Bush Black 1 1/4" x 1" £3.45 33% £2.31
363594MLB IRN CR Reducing Bush Black 1 1/2" x 1/4" £11.80 33% £7.91
363595MLB IRN CR Reducing Bush Black 1 1/2" x 3/8" £12.40 33% £8.31
363596MLB IRN CR Reducing Bush Black 1 1/2" x 1/2" £6.95 33% £4.66
363597MLB IRN CR Reducing Bush Black 1 1/2" x 3/4" £7.55 33% £5.06
363598MLB IRN CR Reducing Bush Black 1 1/2" x 1" £5.50 33% £3.69
363599MLB IRN CR Reducing Bush Black 1 1/2" x 1 1/4" £5.10 33% £3.42
363600MLB IRN CR Reducing Bush Black 2" x 1/2" £14.25 33% £9.55
363601MLB IRN CR Reducing Bush Black 2" x 3/4" £15.00 33% £10.05
363602MLB IRN CR Reducing Bush Black 2" x 1" £11.30 33% £7.57
363603MLB IRN CR Reducing Bush Black 2" x 1 1/4" £10.90 33% £7.30
363604MLB IRN CR Reducing Bush Black 2" x 1 1/2" £10.45 33% £7.00
363605MLB IRN CR Reducing Bush Black 2 1/2" x 1/2" £23.00 33% £15.41
363606MLB IRN CR Reducing Bush Black 2 1/2" x 3/4" £23.00 33% £15.41
363607MLB IRN CR Reducing Bush Black 2 1/2" x 1" £25.15 33% £16.85
363608MLB IRN CR Reducing Bush Black 2 1/2" x 1 1/4" £25.15 33% £16.85
363609MLB IRN CR Reducing Bush Black 2 1/2" x 1 1/2" £24.05 33% £16.11
363610MLB IRN CR Reducing Bush Black 2 1/2" x 2" £17.45 33% £11.69
363611MLB IRN CR Reducing Bush Black 3" x 1 1/4" £41.30 33% £27.67
363612MLB IRN CR Reducing Bush Black 3" x 1 1/2" £34.90 33% £23.38
363613MLB IRN CR Reducing Bush Black 3" x 2" £28.35 33% £18.99
363614MLB IRN CR Reducing Bush Black 3" x 2 1/2" £31.45 33% £21.07
363615MLB IRN CR Reducing Bush Black 4" x 1" £65.30 33% £43.75
363617MLB IRN CR Reducing Bush Black 4" x 2" £77.40 33% £51.86
363618MLB IRN CR Reducing Bush Black 4" x 2 1/2" £77.40 33% £51.86
363619MLB IRN CR Reducing Bush Black 4" x 3" £64.45 33% £43.18
