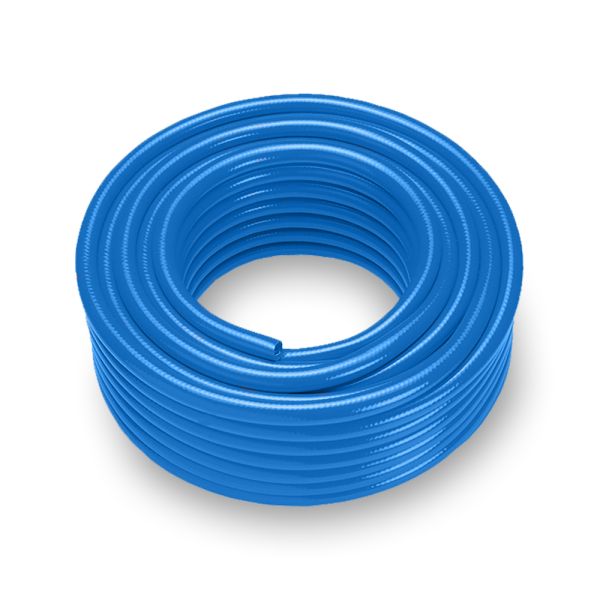

PVC Flexible Lightweight Hose Blue
Useful Information
Technical Specification
- Material: Polyvinyl chloride (PVC), reinforced with polyester yarn
- Colour: Blue
- Standards: BS6066 & ISO5774
- Operating Temperature Range: -15°C to +60°C
- Safety Factor: 3:1 at 20°C
- Pressure Rating: Up to 18 bar (260 psi)
- Weight: Up to 30% lighter than standard PVC hoses
- Resistance: Chemical, abrasion, and kink resistant
- Lengths Available: 30 metres
Description
Engineered through a precision manufacturing process, this lightweight PVC hose delivers robust performance while significantly reducing user fatigue. Its advanced construction ensures high flexibility and durability without compromising strength. Compliant with BS6066 and ISO5774 standards, it is suitable for a wide range of industrial, pneumatic, and food-grade applications. Its low-toxicity formulation allows safe handling of food and beverages, while the braided polyester reinforcement ensures it stands up to demanding environments.
Key Features & Benefits
- Up to 30% lighter than standard PVC hoses - improves handling and transport
- Superior kink resistance over standard PVC and rubber alternatives
- Extremely flexible, ideal for use with air tools and tight installations
- Abrasion and chemical resistant, enhancing product lifespan
- Reinforced with polyester yarn for strength and durability
- Wide temperature tolerance from -15°C to +60°C
- Food-grade suitability due to low-toxicity construction
- Available in multiple diameters and a standard 30m coil length for versatile use
| Product Code | Internal Diameter (mm) | Outer Diameter (mm) | Bend Radius (mm) | Max. Operating Pressure (bar) | Max. Operating Pressure (psi) | Length (m) |
| 370863 | 6 | 10.5 | 28 | 18 | 260 | 30 |
| 370864 | 8 | 12.5 | 29 | 15 | 220 | 30 |
| 370865 | 10 | 14 | 40 | 13 | 190 | 30 |
| 370866 | 12 | 17 | 55 | 11 | 160 | 30 |
