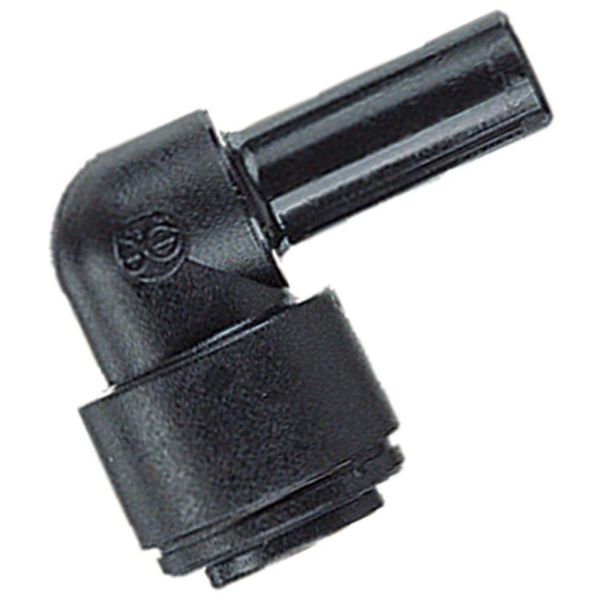

Elbow
Useful Information
Key Features / Tech Specs:
- Manufactured by John Guest
- Metric stem x metric adaptor
- Pressure rated to 16 bar
- Maximum temperature: 65°C
- FDA approved
Useful Info:
| Product Code | To Suit Hose O.D (mm) | Stem O.D (mm) | Max. Bar up to 20°C | Max. Bar at 65°C |
| 381763 | 4 | 4 | 16 | 10 |
| 381764 | 5 | 5 | 16 | 10 |
| 381765 | 6 | 6 | 16 | 10 |
| 381768 | 8 | 8 | 16 | 10 |
| 381770 | 10 | 10 | 10 | 7 |
| 381771 | 12 | 12 | 10 | 7 |
These elbow adaptors have a stem end suited to tube fittings with an outer diameter of 4mm to 15mm and can be used to connect to a tube run in order to redirect it at a 90° angle but can also be connected to other fittings such as regular tube x tube elbows for a makeshift U-bend. These stem adaptors are often used where space is minimal.
Tube inserts must be used with pneumatic applications where pressures are in excess of 10 bar; you should not exceed 16 bar. Suitable for use with Polyethylene, Polyurethane, Nylon tubing as well as soft metal tubings such as copper or mild steel.
