L Series Captive Seal BSPP

Loading...

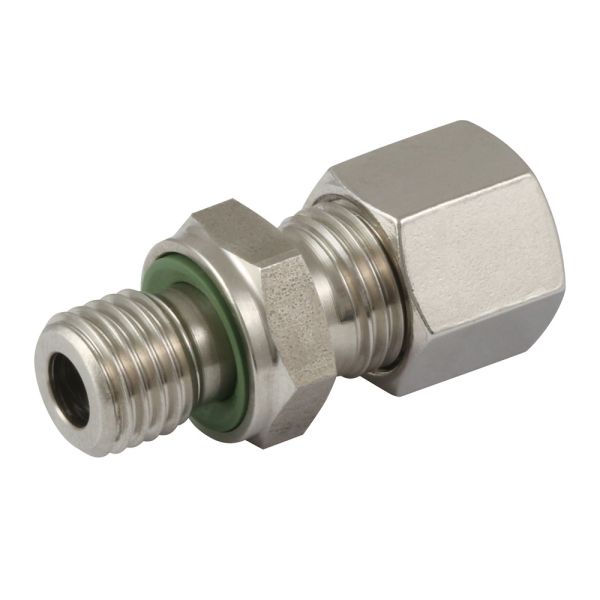

main product photo
More Info
Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: stainless steel - 316 (body), Viton elastomer (sealing ring)
  • BSP parallel threads

Stainless Steel Male Stud Coupling

Product Code Outer Diameter (mm) Thread (inch) L1 (mm) L2 (mm) i (mm) SW1 (mm) SW3 (mm) Max. Operating Pressure (bar)
360382 6 â…› 23 8.5 8 14 14 500
360383 6 ¼ 27 9 12 17 14 500
360384 6 ⅜ 27 11.5 12 22 14 400
360385 6 ½ 29 12 14 27 14 400
360386 8 â…› 26 9.5 8 14 17 500
360387 8 ¼ 25 10 12 19 17 500
360388 8 ⅜ 28.5 11.5 12 22 17 400
360389 8 ½ 28.5 13 14 27 17 400
360390 10 â…› 27.5 11 8 17 19 500
360391 10 ¼ 26 11 12 19 19 500
360392 10 ⅜ 30.5 12.5 12 22 19 400
360393 10 ½ 32.5 13 14 27 19 400
360394 10 ¾ - 14 16 32 19 250
360395 12 â…› 29 11 8 19 22 400
360396 12 ¼ 30 12 12 19 22 400
360397 12 ⅜ 27 12.5 12 22 22 400
360398 12 ½ 31 13 14 27 22 400
360399 12 ¾ 31 14 16 32 22 250
360400 15 ¼ 32 13 12 24 27 400
360401 15 ⅜ 31 13.5 12 24 27 400
360402 15 ½ 29 14 14 27 27 400
360403 15 ¾ 32.5 15 16 32 27 250
360404 15 1 - - 18 41 27 250
360405 18 ⅜ 33 12.5 12 27 32 400
360406 18 ½ 31 14.5 14 27 32 400
360407 18 ¾ 34 14.5 16 32 32 315
360408 18 1 - 16.5 18 41 32 250
360409 22 ⅜ 49 16 12 32 36 250
360410 22 ½ 37 16.5 12 32 36 250
360411 22 ¾ 33 16.5 16 32 36 250
360412 22 1 38 17.5 18 41 36 250
360413 22 1¼ - - 20 50 36 250
360414 28 ½ - 17.5 14 41 41 250
360415 28 ¾ 38 17.5 16 41 41 250
360416 28 1 34 17.5 18 41 41 250
360417 28 1¼ - 18.5 20 51 41 250
360418 28 1½ 43 20.5 22 55 41 250
360419 35 ¾ 42 18.5 16 46 50 250
360420 35 1 42 17.5 18 46 50 250
360421 35 1¼ 39 17.5 20 50 50 250
360423 42 1 47 19 18 55 60 250
360424 42 1¼ 47 19 20 55 60 250
360425 42 1½ 47 19 22 55 60 250
360426 42 2 - 21 23 70 60 250



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
360382 SS Male Stud Coupling DIN 2353 L Captive BSPP 6mm x 1/8" £27.32 50%
You Pay:  £13.66
360383 SS Male Stud Coupling DIN 2353 L Captive BSPP 6mm x 1/4" £35.36 50%
You Pay:  £17.68
360384 SS Male Stud Coupling DIN 2353 L Captive BSPP 6mm x 3/8" £46.12 50%
You Pay:  £23.06
360385 SS Male Stud Coupling DIN 2353 L Captive BSPP 6mm x 1/2" £51.92 50%
You Pay:  £25.96
360386 SS Male Stud Coupling DIN 2353 L Captive BSPP 8mm x 1/8" £28.20 50%
You Pay:  £14.10
360387 SS Male Stud Coupling DIN 2353 L Captive BSPP 8mm x 1/4" £30.28 50%
You Pay:  £15.14
360388 SS Male Stud Coupling DIN 2353 L Captive BSPP 8mm x 3/8" £42.80 50%
You Pay:  £21.40
360389 SS Male Stud Coupling DIN 2353 L Captive BSPP 8mm x 1/2" £49.52 50%
You Pay:  £24.76
360390 SS Male Stud Coupling DIN 2353 L Captive BSPP 10mm x 1/2" £31.84 50%
You Pay:  £15.92
360391 SS Male Stud Coupling DIN 2353 L Captive BSPP 10mm x 1/4" £32.00 50%
You Pay:  £16.00
360392 SS Male Stud Coupling DIN 2353 L Captive BSPP 10mm x 3/8" £46.88 50%
You Pay:  £23.44
360393 SS Male Stud Coupling DIN 2353 L Captive BSPP 10mm x 1/2" £64.56 50%
You Pay:  £32.28
360394 SS Male Stud Coupling DIN 2353 L Captive BSPP 10mm x 3/4" £74.76 50%
You Pay:  £37.38
360395 SS Male Stud Coupling DIN 2353 L Captive BSPP 12mm x 1/8" £47.68 50%
You Pay:  £23.84
360396 SS Male Stud Coupling DIN 2353 L Captive BSPP 12mm x 1/4" £51.72 50%
You Pay:  £25.86
360397 SS Male Stud Coupling DIN 2353 L Captive BSPP 12mm x 3/8" £41.36 50%
You Pay:  £20.68
360398 SS Male Stud Coupling DIN 2353 L Captive BSPP 12mm x 1/2" £60.24 50%
You Pay:  £30.12
360399 SS Male Stud Coupling DIN 2353 L Captive BSPP 12mm x 3/4" £88.32 50%
You Pay:  £44.16
360400 SS Male Stud Coupling DIN 2353 L Captive BSPP 15mm x 1/4" £63.48 50%
You Pay:  £31.74
360401 SS Male Stud Coupling DIN 2353 L Captive BSPP 15mm x 3/8" £65.64 50%
You Pay:  £32.82
360402 SS Male Stud Coupling DIN 2353 L Captive BSPP 15mm x 1/2" £64.48 50%
You Pay:  £32.24
360403 SS Male Stud Coupling DIN 2353 L Captive BSPP 15mm x 3/4" £96.88 50%
You Pay:  £48.44
360404 SS Male Stud Coupling DIN 2353 L Captive BSPP 15mm x 1" £235.08 50%
You Pay:  £117.54
360405 SS Male Stud Coupling DIN 2353 L Captive BSPP 18mm x 3/8" £71.96 50%
You Pay:  £35.98
360406 SS Male Stud Coupling DIN 2353 L Captive BSPP 18mm x 1/2" £76.40 50%
You Pay:  £38.20
360407 SS Male Stud Coupling DIN 2353 L Captive BSPP 18mm x 3/4" £117.36 50%
You Pay:  £58.68
360408 SS Male Stud Coupling DIN 2353 L Captive BSPP 18mm x 1" £134.44 50%
You Pay:  £67.22
360409 SS Male Stud Coupling DIN 2353 L Captive BSPP 22mm x 3/8" £126.80 50%
You Pay:  £63.40
360410 SS Male Stud Coupling DIN 2353 L Captive BSPP 22mm x 1/2" £143.32 50%
You Pay:  £71.66
360411 SS Male Stud Coupling DIN 2353 L Captive BSPP 22mm x 3/4" £106.00 50%
You Pay:  £53.00
360412 SS Male Stud Coupling DIN 2353 L Captive BSPP 22mm x 1" £187.28 50%
You Pay:  £93.64
360413 SS Male Stud Coupling DIN 2353 L Captive BSPP 22mm x 1 1/4" £125.68 50%
You Pay:  £62.84
360414 SS Male Stud Coupling DIN 2353 L Captive BSPP 28mm x 1/2" £122.36 50%
You Pay:  £61.18
360415 SS Male Stud Coupling DIN 2353 L Captive BSPP 28mm x 3/4" £173.36 50%
You Pay:  £86.68
360416 SS Male Stud Coupling DIN 2353 L Captive BSPP 28mm x 1" £164.36 50%
You Pay:  £82.18
360417 SS Male Stud Coupling DIN 2353 L Captive BSPP 28mm x 1 1/4" £89.24 50%
You Pay:  £44.62
360418 SS Male Stud Coupling DIN 2353 L Captive BSPP 28mm x 1.1/2" £131.00 50%
You Pay:  £65.50
360419 SS Male Stud Coupling DIN 2353 L Captive BSPP 35mm x 3/4" £274.60 50%
You Pay:  £137.30
360420 SS Male Stud Coupling DIN 2353 L Captive BSPP 35mm x 1" £267.92 50%
You Pay:  £133.96
360421 SS Male Stud Coupling DIN 2353 L Captive BSPP 35mm x 1 1/4" £366.36 50%
You Pay:  £183.18
360423 SS Male Stud Coupling DIN 2353 L Captive BSPP 42mm x 1" £405.48 50%
You Pay:  £202.74
360424 SS Male Stud Coupling DIN 2353 L Captive BSPP 42mm x 1 1/4" £283.60 50%
You Pay:  £141.80
360425 SS Male Stud Coupling DIN 2353 L Captive BSPP 42mm x 1 1/2" £351.04 50%
You Pay:  £175.52
360426 SS Male Stud Coupling DIN 2353 L Captive BSPP 42mm x 2" £1,240.16 50%
You Pay:  £620.08
