L Series

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: mild steel
  • Manufactured to DIN 2353
  • Male parallel metric thread
  • Flows from male stud end
  • Series L (light)

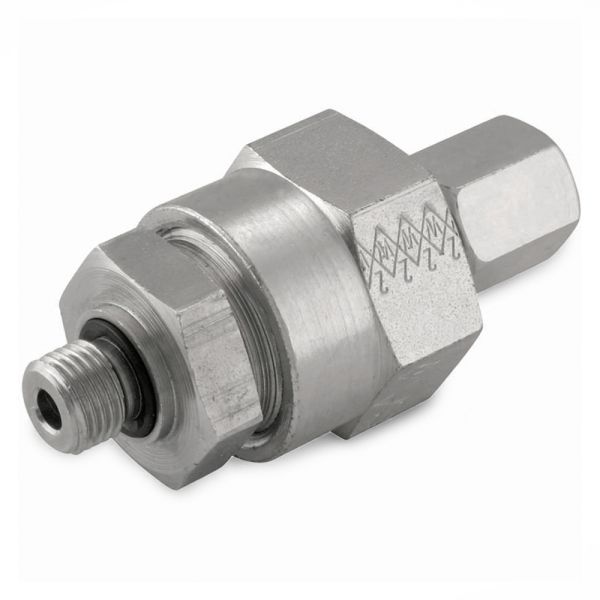

Eaton Non-return valve L

Product Code Outer Diameter (mm) Thread (mm) d (mm) L2 (mm) L5 (mm) l (mm) i (mm) S1 (mm) S2 (mm) S3 (mm) Outlet Diameter (mm) Max. Pressure (bar)
365573 6 M10 x 1 13.9 50.5 43 36 8 22 14 27 4 400
365574 8 M12 x 1.5 16.9 50.5 43 36 12 22 17 27 6 400
365575 10 M14 x 1.5 18.9 48.5 41 34 12 22 19 27 7 400
365576 12 M16 x 1.5 21.9 53.5 46 39 12 22 22 27 7.5 400
365577 15 M18 x 1.5 23.9 56 48 41 12 27 27 32 11 400
365578 18 M22 x 1.5 29.9 61.5 53 45.5 14 27 32 32 11 400
365579 22 M26 x 1.5 31.9 69.5 61 53.5 16 41 36 46 18 250
365580 28 M33 x 2 39.9 77 68 60.5 18 41 41 46 18.5 250
365581 35 M42 x 2 49.9 88.5 77.5 67 20 60 50 70 29 250
365582 42 M48 x 2 54.9 87.5 75.5 64.5 22 60 60 70 29 250



Technical Info:

Eaton Non-Return Valve - Tube to Thread Flow



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
365573EN Non-Return Valve Tube to Thread Flow L 6mm x M10 x 1 £32.55 30% £22.79
365574EN Non-Return Valve Tube to Thread Flow L 8mm x M12 x 1.5 £36.15 30% £25.31
365575EN Non-Return Valve Tube to Thread Flow L 10mm x M14 x 1.5 £45.00 30% £31.50
365576EN Non-Return Valve Tube to Thread Flow L 12mm x M16 x 1.5 £55.50 30% £38.85
365577EN Non-Return Valve Tube to Thread Flow L 15mm x M18 x 1.5 £68.45 30% £47.92
365578EN Non-Return Valve Tube to Thread Flow L 18mm x M22 x 1.5 £94.25 30% £65.98
365579EN Non-Return Valve Tube to Thread Flow L 22mm x M26 x 1.5 £150.85 30% £105.60
365580EN Non-Return Valve Tube to Thread Flow L 28mm x M33 x 2 £218.30 30% £152.81
365581EN Non-Return Valve Tube to Thread Flow L 35mm x M42 x 2 £281.45 30% £197.02
365582EN Non-Return Valve Tube to Thread Flow L 42mm x M48 x 2 £305.95 30% £214.17
