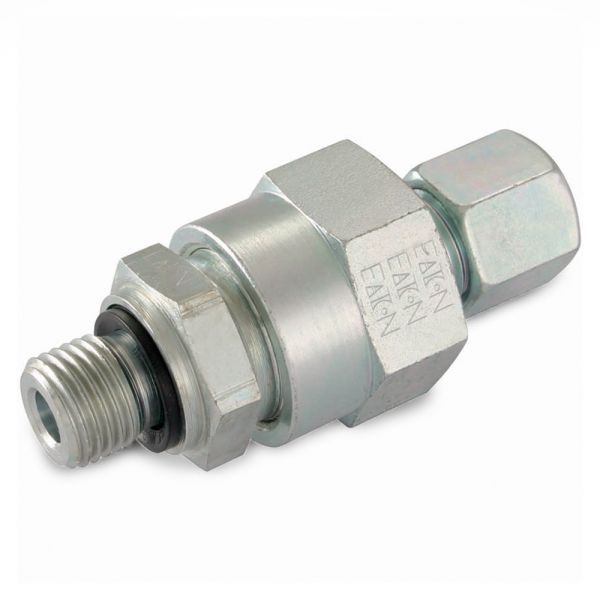

S Series
Useful Information
Key Features / Tech Specs:
- Material: mild steel
- Manufactured to DIN 2353
- Male BSPP thread
- Flows from male stud end
- Series S (heavy)
| Product Code | Outer Diameter (mm) | Thread (inch) | d (mm) | L2 (mm) | L5 (mm) | l (mm) | i (mm) | S1 (mm) | S2 (mm) | S3 (mm) | Outlet Diameter (mm) | Max. Pressure (bar) |
| 365523 | 6 | 1/4 | 18.9 | 52.5 | 45 | 38 | 12 | 22 | 17 | 27 | 4 | 400 |
| 365524 | 8 | 1/4 | 18.9 | 50.5 | 43 | 36 | 12 | 22 | 19 | 27 | 5 | 400 |
| 365525 | 10 | 3/8 | 21.9 | 53.5 | 45 | 37.5 | 12 | 22 | 22 | 27 | 7.5 | 400 |
| 365526 | 12 | 3/8 | 21.9 | 55.5 | 47 | 39.5 | 12 | 22 | 24 | 27 | 7.5 | 400 |
| 365527 | 14 | 1/2 | 26.9 | 59.5 | 50 | 42 | 14 | 27 | 27 | 32 | 10 | 400 |
| 365528 | 16 | 1/2 | 26.9 | 62.5 | 53 | 44.5 | 14 | 27 | 30 | 32 | 11 | 400 |
| 365529 | 20 | 3/4 | 31.9 | 74 | 63 | 52.5 | 16 | 41 | 36 | 46 | 16 | 400 |
| 365530 | 25 | 1 | 39.9 | 77 | 65 | 53 | 18 | 41 | 46 | 46 | 20 | 250 |
| 365531 | 30 | 1.25 | 49.9 | 87 | 74 | 60.5 | 20 | 50 | 50 | 55 | 24 | 250 |
| 365532 | 38 | 1.5 | 54.9 | 96 | 81.5 | 65.5 | 22 | 60 | 60 | 70 | 29 | 250 |
Technical Info:
