L Series

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: mild steel
  • Manufactured to DIN 2353
  • Male BSPP thread
  • Flows from male stud end
  • Series L (light)

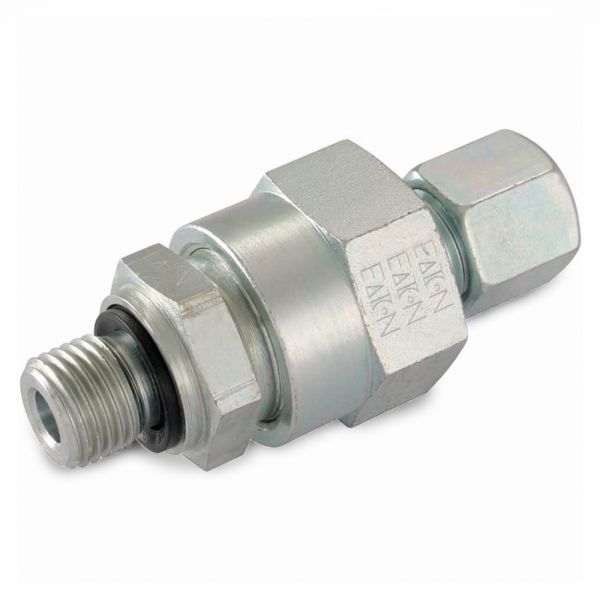

Eaton Non-Return Valve L

Product Code Outer Diameter (mm) Thread (inch) d (mm) L2 (mm) L5 (mm) l (mm) i (mm) S1 (mm) S2 (mm) S3 (mm) Outlet Diameter (mm) Max. Pressure (bar)
365513 6 1/8 13.9 50.5 43 36 8 22 14 27 4 400
365514 8 1/4 18.9 50.5 43 36 12 22 17 27 6 400
365515 10 1/4 18.9 48.5 41 34 12 22 19 27 6 400
365516 12 3/8 21.9 53.5 46 39 12 22 22 27 7.5 400
365517 15 1/2 26.9 56 48 41 14 27 27 32 11 400
365518 18 1/2 26.9 61.5 53 45.5 14 27 32 32 11 400
365519 22 3/4 31.9 69.5 61 53.5 16 41 36 46 18 250
365520 28 1 39.9 77 68 60.5 18 41 41 46 20 250
365521 35 1.25 49.9 88.5 77.5 67 20 60 50 70 29 250
365522 42 1.5 54.9 87.5 75.5 64.5 22 60 60 70 29 250



Technical Info:

Eaton Non-Return Valve - Tube to Thread Flow



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
365513EN Non-Return Valve Thread to Tube Flow BSPP L 6mm x 1/8" £31.05 30% £21.74
365514EN Non-Return Valve Thread to Tube Flow BSPP L 8mm x 1/4" £33.25 30% £23.28
365515EN Non-Return Valve Thread to Tube Flow BSPP L 10mm x 1/4" £41.70 30% £29.19
365516EN Non-Return Valve Thread to Tube Flow BSPP L 12mm x 3/8" £51.40 30% £35.98
365517EN Non-Return Valve Thread to Tube Flow BSPP L 15mm x 1/2" £63.05 30% £44.14
365518EN Non-Return Valve Thread to Tube Flow BSPP L 18mm x 1/2" £88.45 30% £61.92
365519EN Non-Return Valve Thread to Tube Flow BSPP L 22mm x 3/4" £137.05 30% £95.94
365520EN Non-Return Valve Thread to Tube Flow BSPP L 28mm x 1" £197.80 30% £138.46
365521EN Non-Return Valve Thread to Tube Flow BSPP L 35mm x 1 1/4" £266.75 30% £186.73
365522EN Non-Return Valve Thread to Tube Flow BSPP L 42mm x 1 1/2" £288.65 30% £202.06
