Thread Type: BSPP (British Standard Parallel Pipe)
Thread Ends: BSPP Male x Swivel Female
Test Port Size: 1/8" BSP Test Point
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

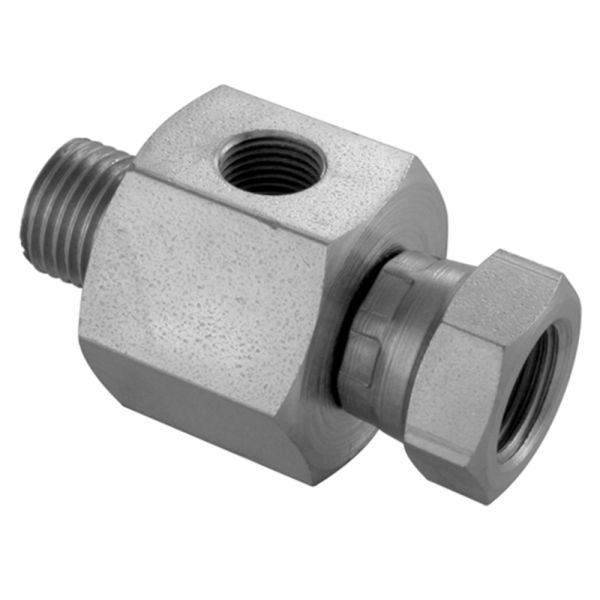

This hydraulic test adaptor allows safe pressure monitoring without disconnecting fittings. Featuring a BSPP male, swivel female, and 1/8" BSP test point, it enables quick connection of diagnostic tools for pressure checks and leak detection. The swivel design ensures easy installation, while high-quality steel construction provides durability and leak-free performance in high-pressure systems.
Key Features & Benefits
Material Strength: Robust mild steel construction ensures durability
Thread Configuration: BSPP male to swivel female with integrated test point
Test Point Access: 1/8" BSP port allows easy pressure monitoring and system diagnostics
Swivel Female Design: Simplifies installation and alignment in confined spaces
Standard Compliance: Produced to BS EN 10277 for precise and reliable threading
Versatile Application: Ideal for hydraulic and pneumatic systems requiring test access
Quality Manufacturing: Manufactured under ISO 9001-certified processes for consistent reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (")
T2 (")
T3 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
A/F1 (mm)
380511
01425-TP-B02
1/8
1/8
1/8
0.156
0.125
0.44
1.66
1.9
27
14
380512
01427-TP-B02
1/4
1/4
1/8
0.185
0.172
0.45
1.726
1.94
27
19
380513
01434-TP-B02
3/8
3/8
1/8
0.312
0.271
0.52
1.892
2.13
27
22
380514
01440-TP-B02
1/2
1/2
1/8
0.437
0.375
0.6
1.998
2.3
27
27
380515
01451-TP-B02
3/4
3/4
1/8
0.6
0.6
0.75
2.1
2.49
32
32
380516
01458-TP-B02
1
1
1/8
0.843
0.797
0.8
2.078
2.53
41
41
