Thread Type: BSPP swivel female (run) x BSPP male (branch)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

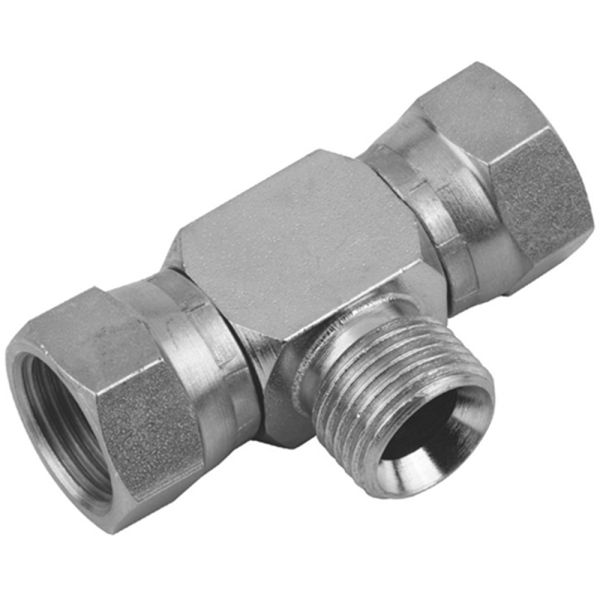

This 90° tee features BSPP swivel female connections along the run and a BSPP male branch with a 60° cone seating, designed for secure and leak-resistant connections in hydraulic systems. The swivel female ends allow for easy hose or pipe alignment without twisting, while the male branch offers a strong metal-to-metal seal. Manufactured from high-grade steel to BS EN 10277 standards, this fitting delivers dependable performance in high-pressure and demanding environments.
Key Features & Benefits
Versatile Tee Configuration: Swivel female x swivel female run with male branch for flexible installation
Swivel Female Ends: Simplifies alignment during assembly
Strong Steel Construction: Built to handle high-pressure hydraulic applications
BS EN 10277 Compliance: Meets stringent engineering specifications
ISO Certified Quality: Produced under ISO 9001 manufacturing standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

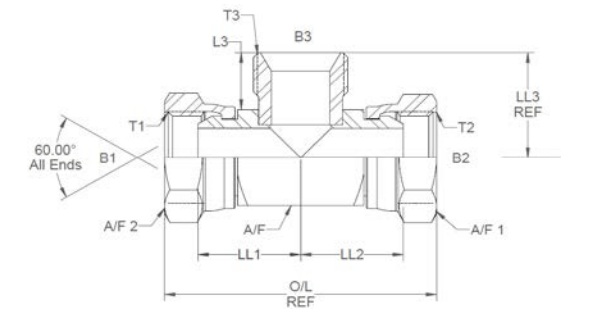

T1, T2 & T3 (")
B1 & B2 (")
B3 (")
L3 (")
O/L (")
LL1 & LL2 (")
LL3 (")
A/F (")
A/F1 & A/F2 (mm)
380147
ZFFMB04
1/4
0.172
0.185
0.465
1.97
0.77
0.773
0.625
19
380148
ZFFMB06
3/8
0.271
0.312
0.56
2.51
1.002
0.935
0.75
22
380149
ZFFMB08
1/2
0.375
0.437
0.61
2.71
1.063
1.048
0.875
27
380150
ZFFMB10
5/8
0.5
0.437
0.7
3.11
1.135
1.335
1
30
380151
ZFFMB12
3/4
0.6
0.625
0.75
3.25
1.232
1.312
1.125
32
380152
ZFFMB16
1
0.797
0.812
0.8
3.72
1.423
1.487
1.375
41
380153
ZFFMB20
1 1/4
1.014
0.875
0.8
4.29
1.715
1.86
1.75
50
