Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

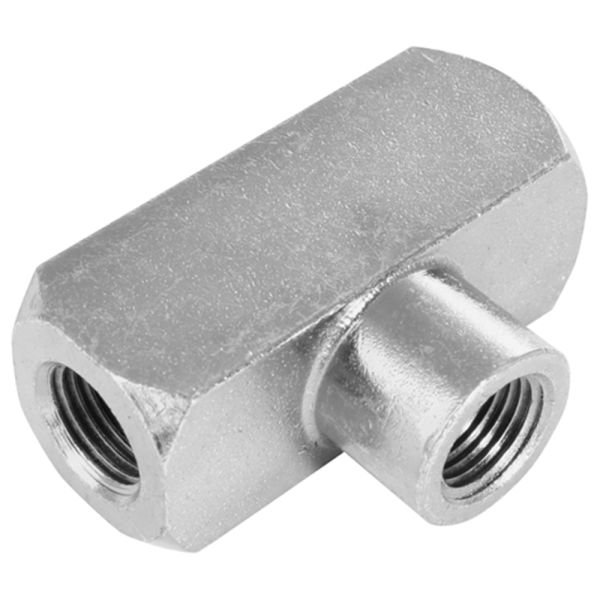

A high-quality 90° NPTF female tee designed for connecting three male-threaded NPTF components in hydraulic or pneumatic systems. Manufactured from precision-machined steel to BS EN 10277 standards, this fitting offers excellent durability, corrosion resistance, and secure sealing performance. Its NPTF (Dryseal) thread form provides a leak-tight connection without the need for sealant in most applications, making it suitable for demanding industrial environments.
Key Features & Benefits
Strong Steel Construction: Built for long-lasting performance
Leak-Tight NPTF Threads: Dryseal design ensures a secure seal
Universal Use: Connects three NPTF male fittings in a 90° configuration
Precision Engineering: Conforms to BS EN 10277 for consistent quality
Pressure-Resistant: Suitable for high-pressure hydraulic applications
ISO Certified: Produced under ISO 9001 quality management standards
Downloads
Burnett & Hillman Pressure Guide

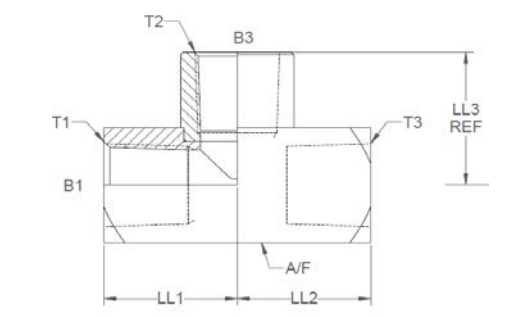

SKU
Product Code
T1, T2 & T3 (")
B1 & B3 (")
LL1 & LL2 (")
LL3 (")
A/F (")
380205
07000
1/8
0.33
0.775
0.737
0.625
380206
07001
1/4
0.421
0.89
0.89
19mm
380207
07002
3/8
0.561
1
1.125
1
380208
07003
1/2
0.689
1.25
1.302
1.125
380209
07004
3/4
0.895
1.5
1.532
1.375
380210
07005
1
1.137
1.725
1.735
1.75
380211
07006
1 1/4
1.476
2.062
2
2
380212
07007
1 1/2
1.713
2.25
2.25
2.5
380213
07008
2
2.165
2.65
2.65
3
