Thread Type: NPT male x NPT female run, NPT male branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads, for guidance only
Quality Assurance: ISO 9001-certified production
Description

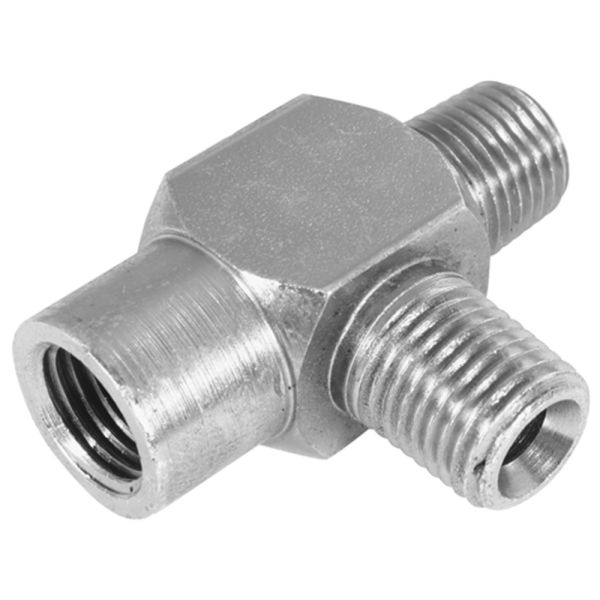

A robust 90° NPT tee with a male-to-female run and a male branch outlet, both male connections incorporating a 60° cone seat for secure metal-to-metal sealing. Engineered for high-pressure hydraulic and pneumatic applications, this tee ensures reliable, leak-free connections while withstanding vibration and repeated use. Precision-machined from high-quality steel to BS EN 10277 standards, it offers exceptional durability and a consistent, accurate fit.
Key Features & Benefits
Strong Steel Construction: Provides durability and corrosion resistance
Versatile Connection Layout: Combines male and female NPT threads for system flexibility
High-Pressure Capability: Suitable for demanding hydraulic environments
Precision Manufacture: BS EN 10277 compliant for consistent performance
Quality Certified: ISO 9001 manufacturing for assured reliability
Downloads
Burnett & Hillman Pressure Guide

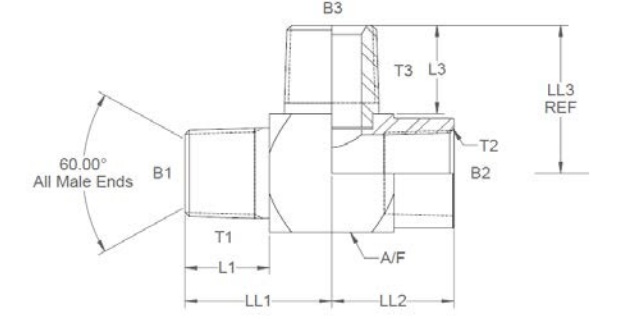

SKU
Product Code
Male Thread T1 & T3 (")
Female Thread T2 (")
B1 & B3 (")
L1 (")
L3 (")
LL1 (")
LL2 (")
LL3 (")
A/F (")
380154
08010
1/4
1/4
0.25
0.56
0.71
1.037
0.992
1.08
0.75
380155
08011
3/8
3/8
0.375
0.56
0.7
1.095
1.105
1.2
1
380156
08012
1/2
1/2
0.5
0.75
0.943
1.42
1.33
1.505
1.125
380157
08013
3/4
3/4
0.687
0.75
0.96
1.57
1.47
1.647
1.375
380158
08014
1
1
0.843
1.195
1.315
2.07
1.725
2.19
1.75
380159
08015
1 1/4
1 1/4
1.203
1.325
1.49
2.387
2.062
2.49
2
380160
08016
1 1/2
1 1/2
1.312
1.6
1.64
2.912
2.312
2.89
2.5
