Thread Type: NPT male x NPT female run, NPT female branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

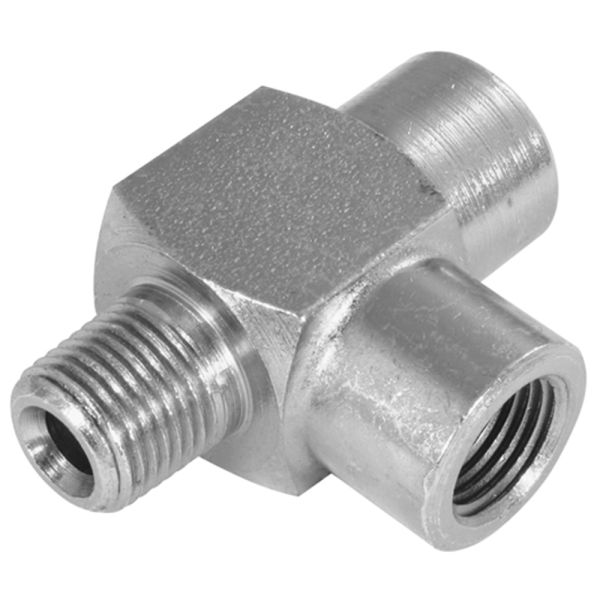

A high-strength 90° NPT tee with a male connection on one end of the run, a female connection on the opposite end, and a female branch outlet. The male outlet features a 60° cone seat for reliable metal-to-metal sealing, ensuring secure, leak-free performance in hydraulic, pneumatic, and industrial fluid systems. Built from precision-machined steel and compliant with BS EN 10277 standards, this fitting offers excellent durability and consistent performance in demanding applications.
Key Features & Benefits
Durable Steel Construction: Long-lasting and corrosion-resistant
60° Cone Seal on Male End: Provides secure, vibration-resistant connections
Mixed Connection Options: Combines male and female NPT threads for installation flexibility
High-Pressure Performance: Suitable for heavy-duty hydraulic systems
Precision Engineering: Manufactured to BS EN 10277 for exact fit and performance
ISO 9001 Certified: Guaranteed quality manufacturing
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

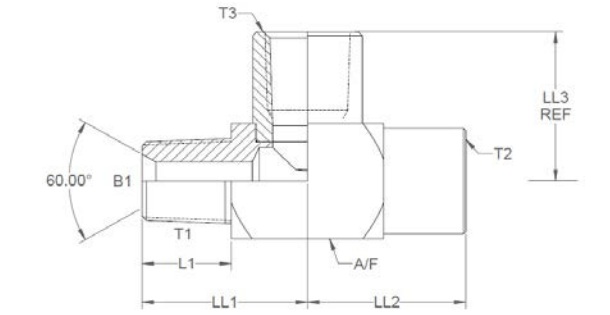

T1, T2 & T3 (")
B1 (")
L1 (")
LL1 (")
LL2 (")
LL3 (")
A/F (")
380161
07059
1/8
0.188
0.38
0.705
0.725
0.737
0.625
380162
07060
1/4
0.25
0.56
1.037
0.992
0.97
0.75
380163
07061
3/8
0.375
0.56
1.095
1.105
1.125
1
380164
07062
1/2
0.5
0.75
1.42
1.33
1.302
1.125
380165
07063
3/4
0.687
0.75
1.57
1.47
1.532
1.375
380166
07064
1
0.843
1.195
2.07
1.725
1.735
1.75
380167
07065
1 1/4
1.203
1.325
2.387
2.062
2
2
380168
07066
1 1/2
1.312
1.6
2.912
2.312
2.25
2.5
