Thread Type: JIC swivel female x JIC swivel female run, JIC male branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads, for guidance only
Quality Assurance: ISO 9001-certified production
Description

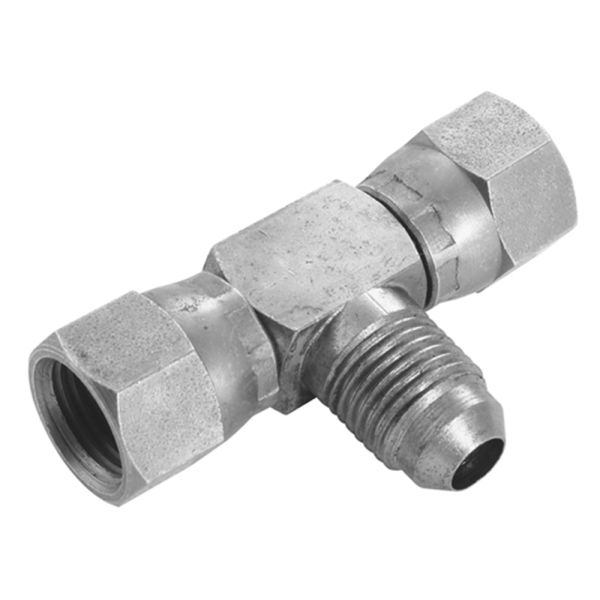

A precision-engineered 90° tee with JIC swivel female connections on the run and a JIC male branch, featuring 37° cone seats for dependable metal-to-metal sealing. Designed for demanding hydraulic and fluid transfer systems, this fitting provides flexibility for installation while maintaining a secure, leak-free joint. Manufactured from high-quality steel to BS EN 10277 standards, it offers excellent durability, corrosion resistance, and dimensional accuracy for consistent performance in high-pressure applications.
Mixed Swivel & Male Configuration: Flexibility for varied system layouts
Steel Construction: High strength and corrosion resistance
Precision Manufacture: Consistent fitment to BS EN 10277 standard
High-Pressure Capability: Suitable for demanding hydraulic applications
ISO 9001 Certified: Manufactured in quality-approved facilities
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

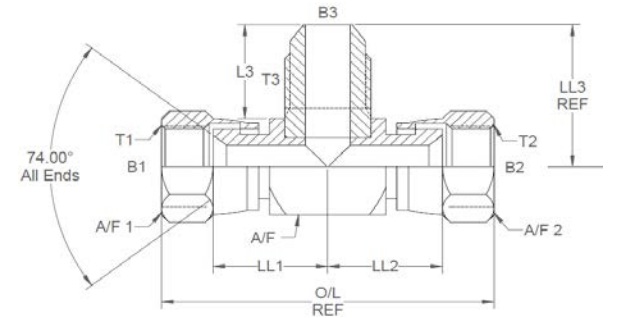

Female Thread T1 & T2 (")
Male Thread T3 (")
B1 & B2 (")
B3 (")
L3 (")
O/L (")
LL1 & LL2 (")
LL3 (")
A/F (")
A/F1 & A/F2 (")
381198
ZFFMJ07
7/16
7/16
0.176
0.172
0.64
2
0.625
0.89
0.5
0.562
381199
ZFFMJ08
1/2
1/2
0.203
0.234
0.64
2.13
0.684
0.89
0.5
0.625
381200
ZFFMJ09
9/16
9/16
0.297
0.297
0.7
2.33
0.772
1.012
0.625
0.687
381201
ZFFMJ14
7/8
7/8
0.5
0.484
0.95
3.21
1.097
1.45
1
1
381202
ZFFMJ21
1 5/16
1 5/16
0.812
0.844
1.22
4.15
1.46
1.907
1.375
1.5
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
