Thread Type: JIC male x JIC swivel female run, JIC male branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads, for guidance only
Quality Assurance: ISO 9001-certified production
Description

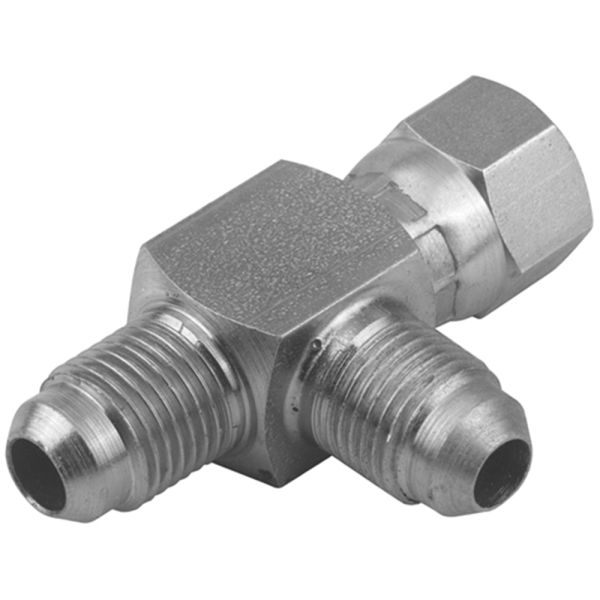

This 90° tee features a JIC male and JIC swivel female on the run with a JIC male branch, all with 37° cone seats for secure, leak-free hydraulic connections. The swivel female design allows for easier alignment during installation, reducing assembly time and minimising stress on the system. Precision-manufactured from high-grade steel to BS EN 10277, it offers high strength, excellent corrosion resistance, and reliable fitment for demanding hydraulic and fluid transfer applications.
Swivel Female Connection: Simplifies installation and alignment
Steel Construction: Robust and corrosion-resistant
Precision Manufacturing: Consistent quality to BS EN 10277 standard
Hydraulic System Ready: Suitable for high-pressure applications
Quality Certified: Produced in ISO 9001-approved facilities
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

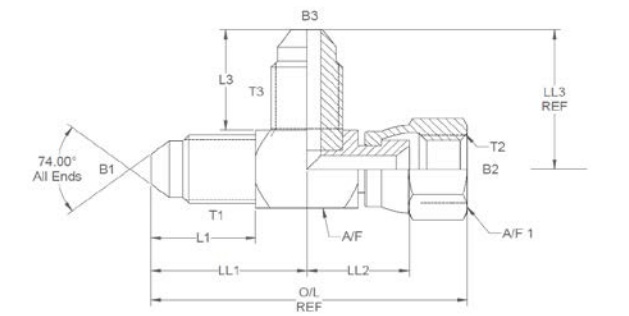

Male Thread T1 & T3 (")
Female Thread T2 (")
B1, B2 & B3 (")
L1 & L3 (")
O/L (")
LL1 & LL3 (")
LL2 (")
A/F (")
A/F1 (")
381183
ZMFMJ07
7/16
7/16
0.172
0.535
1.9
0.89
0.63
0.438
0.562
381184
ZMFMJ08
1/2
1/2
0.234
0.535
2.05
0.95
0.65
0.562
0.625
381185
ZMFMJ09
9/16
9/16
0.297
0.541
2.301
1.06
0.8
0.562
0.687
381186
ZMFMJ12
3/4
3/4
0.391
0.642
2.625
1.25
0.88
0.750
0.875
381187
ZMFMJ14
7/8
7/8
0.484
0.743
3.1
1.45
1.1
0.875
1
381188
ZMFMJ17
1 1/16
1 1/16
0.609
0.849
3.44
1.66
1.1
1.062
1.25
381189
ZMFMJ21
1 5/16
1 5/16
0.843
0.896
3.85
1.81
1.36
1.312
1.5
381190
ZMFMJ26
1 5/8
1 5/8
1.078
0.943
4.4
2.06
1.73
1.625
50mm
381191
ZMFMJ30
1 7/8
1 7/8
1.312
1.2
4.77
2.262
1.812
2
55mm
