Thread Type: JIC male x JIC male run, JIC swivel female branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads, for guidance only
Quality Assurance: ISO 9001-certified production
Description
A precision-engineered 90° tee featuring JIC male threads on the run and a JIC swivel female branch, all with 37° cone seats for secure, metal-to-metal sealing. The swivel female branch provides easy alignment during installation, reducing the risk of hose twist and simplifying maintenance in tight or complex hydraulic layouts. Manufactured from high-grade steel to BS EN 10277 standards, this fitting offers exceptional durability, corrosion resistance, and precise fitment for demanding hydraulic and fluid transfer applications.
Key Features & Benefits
37° Cone Sealing: Reliable, leak-free connections that resist vibration in high-pressure systems
Swivel Female Branch: Facilitates easier installation and hose alignment without twisting
Steel Construction: High strength and corrosion resistance for extended service life
Precision Manufacture: Accurate fit and consistency to BS EN 10277 standard
High-Pressure Capability: Suitable for demanding hydraulic environments
Quality Certified: Produced in ISO 9001-approved manufacturing facilities
Downloads
Burnett & Hillman Pressure Guide
SKU
Product code

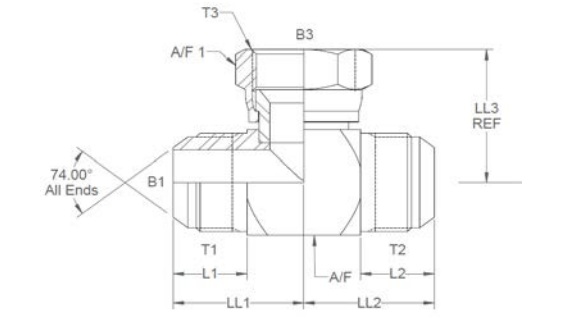

Male Thread T1 & T2 (")
Female Thread T3 (")
B1 (")
B3 (")
L1 & L2 (")
LL1 & LL2 (")
LL3 (")
A/F (")
A/F1 (")
381216
ZMMFJ07
7/16
7/16
0.173
0.173
0.535
0.89
1
0.438
0.562
381217
ZMMFJ09
9/16
9/16
0.297
0.297
0.541
1.06
1.25
0.562
0.687
381218
ZMMFJ12
3/4
3/4
0.391
0.391
0.642
1.25
1.38
0.75
0.875
381219
ZMMFJ14
7/8
7/8
0.484
0.5
0.875
1.437
1.58
1
1
381220
ZMMFJ26
1 5/8
1 5/8
1.078
1.075
1.175
2.075
2.18
1.75
50mm
