Thread Type: JIC male x JIC male run, JIC male branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads, for guidance only
Quality Assurance: ISO 9001-certified production
Description

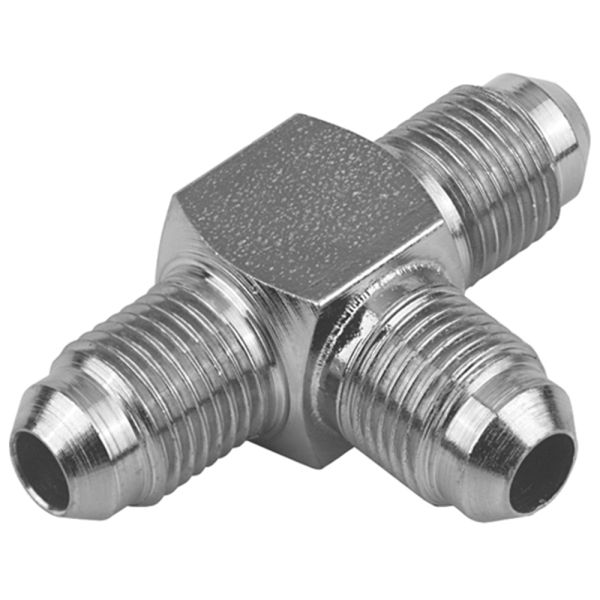

A precision-engineered 90° tee with JIC male connections on both the run and the branch, featuring 37° cone seats for reliable metal-to-metal sealing. Designed for high-performance hydraulic and fluid transfer systems, this fitting ensures a secure, vibration-resistant joint in demanding environments. Manufactured from high-grade steel to BS EN 10277 standards, it offers excellent durability, corrosion resistance, and accurate fitment.
Key Features & Benefits
37° Cone Sealing: Leak-free, vibration-resistant connections for hydraulic systems
All-Male Configuration: Versatile layout for various system designs
Steel Construction: High strength and corrosion resistance
Precision Manufacture: Consistent, reliable fit to BS EN 10277 standard
Quality Certified: Manufactured in ISO 9001-approved facilities
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1, T2 & T3 (")
B1 & B3 (")
L1, L2 & L3 (")
LL1, LL2 & LL3 (")
A/F (")
381209
ZMJ07
7/16
0.172
0.535
0.89
0.438
381210
ZMJ09
9/16
0.297
0.541
1.06
0.562
381211
ZMJ12
3/4
0.391
0.642
1.25
0.75
381212
ZMJ14
7/8
0.484
0.743
1.45
0.875
381213
ZMJ17
1 1/16
0.609
0.99
1.615
1.125
381214
ZMJ19
1 3/16
0.719
1.1
1.8
1.375
381215
ZMJ21
1 5/16
0.844
1.22
1.837
1.375
