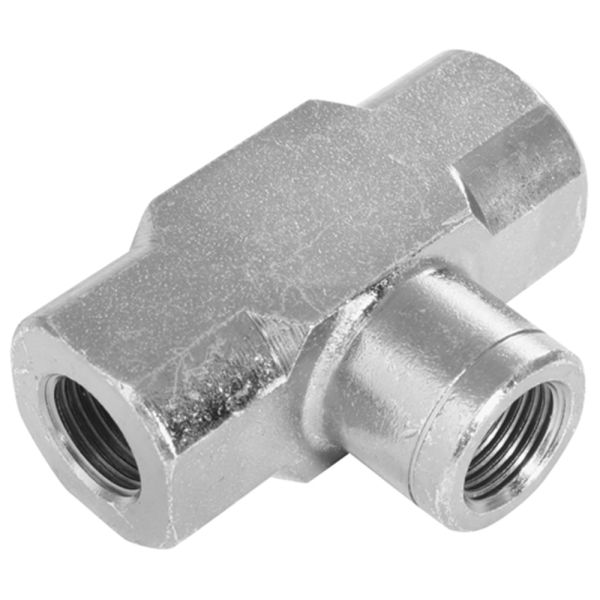

BH BSPP Female Tee

Loading...
Useful Information

Technical Specification

  • Sizes Available: 1/8" - 2"
  • Material: Steel
  • Thread Type: BSPP fixed female
  • Configuration: 90° tee – BSPP fixed female connections
  • Standard Compliance: Manufactured to BS EN 10277
  • Temperature Range: -40°C to +120°C without pressure reduction
  • Pressure Ratings:
  • Proof Pressure: 2× working pressure
  • Burst Pressure: 4× working pressure
  • Torque Guidance: For lightly oiled steel threads
  • Quality Assurance: ISO 9001-certified manufacturing

Description

This 90° tee features BSPP fixed female connections, designed to provide a secure and leak-free join in hydraulic pipework and fittings. Suitable for a wide range of hydraulic applications, it is manufactured from robust steel to BS EN 10277 standards, ensuring durability, precision, and consistent performance in demanding environments.

Key Features & Benefits

  • 90° Tee with BSPP Fixed Female Connections: Versatile fitting for hydraulic systems
  • Strong Steel Construction: Built to withstand high pressures
  • Precision Machined: Ensures a secure, leak-free connection
  • Wide Application Range: Suitable for industrial and mobile hydraulics
  • BS EN 10277 Compliance: Meets strict engineering standards
  • ISO Certified Quality: Produced under ISO 9001 manufacturing standards

Downloads

Burnett & Hillman Pressure Guide

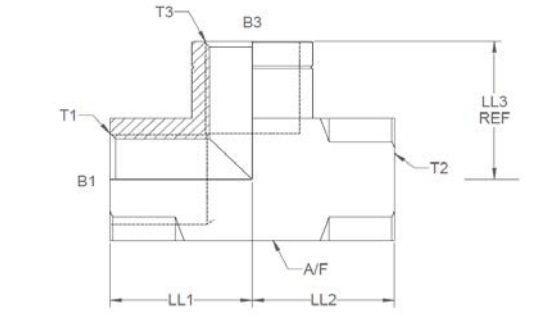

SKU Product Code T1, T2 & T3 (") B1 & B3 (") LL1 & LL2 (") LL3 (") A/F (")
380195 11975 1/8 0.344 0.775 0.782 0.625
380196 11976 1/4 0.464 0.937 0.937 0.75
380197 11977 3/8 0.6 1.05 1.095 1
380198 11978 1/2 0.75 1.25 1.272 1.125
380199 11979 5/8 0.828 1.38 1.495 1.25
380200 11980 3/4 0.964 1.5 1.513 1.375
380201 11981 1 1.211 1.75 1.78 1.75
380202 11982 1 1/4 1.555 2.25 2.205 2.25
380203 11985 1 1/2 1.781 2.25 2.5 2.5
380204 11984 2 2.25 2.65 2.9 3



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
Code Product Name List Price You Save You Pay Quantity
380195 BH BSPP Tee F x F x F 1/8" x 1/8" x 1/8" £11.77 50%
You Pay:  £5.88
380196 BH BSPP Tee F x F x F 1/4" x 1/4" x 1/4" £11.77 50%
You Pay:  £5.88
380197 BH BSPP Tee F x F x F 3/8" x 3/8" x 3/8" £18.23 50%
You Pay:  £9.12
380198 BH BSPP Tee F x F x F 1/2" x 1/2" x 1/2" £15.43 50%
You Pay:  £7.72
380199 BH BSPP Tee F x F x F 5/8" x 5/8" x 5/8" £20.87 50%
You Pay:  £10.43
380200 BH BSPP Tee F x F x F 3/4" x 3/4" x 3/4" £22.17 50%
You Pay:  £11.08
380201 BH BSPP Tee F x F x F 1" x 1" x 1" £32.70 50%
You Pay:  £16.35
380202 BH BSPP Tee F x F x F 1 1/4" x 1 1/4" x 1 1/4" £70.73 50%
You Pay:  £35.37
380203 BH BSPP Tee F x F x F 1 1/2" x 1 1/2" x 1 1/2" £223.27 50%
You Pay:  £111.63
380204 BH BSPP Tee F x F x F 2" x 2" x 2" £257.13 50%
You Pay:  £128.57
