Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

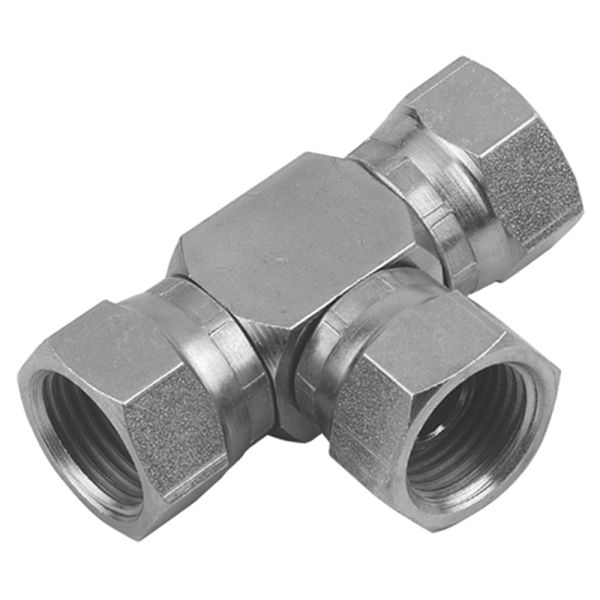

This 90° tee is designed with BSPP swivel female connections and a precision-engineered 60° cone seating, allowing for secure and leak-resistant connections in hydraulic systems. The swivel design makes installation and alignment easier without twisting the hose or pipework. Manufactured from high-quality steel to BS EN 10277 standards, it delivers reliable performance and long service life in demanding hydraulic applications.
Key Features & Benefits
90° Tee with Swivel Female BSPP Connections: Allows easier alignment during installation
BS EN 10277 Compliance: Built to industry standards
ISO Certified Quality: Manufactured under ISO 9001 quality control
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

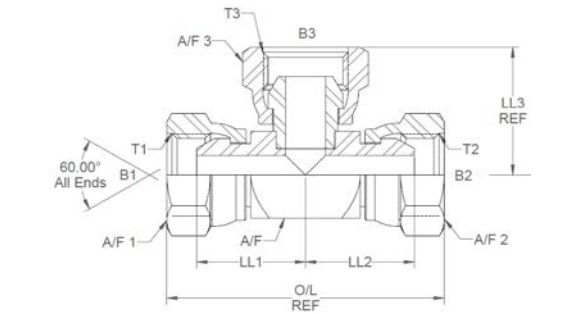

T1, T2 & T3 (")
B1, B2 & B3 (")
O/L (")
LL1 & LL2 (")
LL3 (")
A/F (")
A/F1, A/F2 & A/F3 (")
380185
ZFB02
1/8
0.125
1.79
0.71
0.81
0.5
14
380186
ZFB04
1/4
0.172
2
0.785
0.975
0.625
19
380187
ZFB06
3/8
0.271
2.51
1.002
1.158
0.75
22
380188
ZFB08
1/2
0.375
2.71
1.063
1.283
0.875
27
380189
ZFB10
5/8
0.464
3.12
1.135
1.45
1
30
380190
ZFB12
3/4
0.6
3.25
1.232
1.49
1.125
32
380191
ZFB16
1
0.797
0.797
1.423
1.72
1.375
41
380192
ZFB20
1 1/4
1.014
4.3
1.715
2.015
1.75
50
380193
ZFB24
1 1/2
1.201
5.204
2.1
2.342
2
55
380194
ZFB32
2
1.703
6.2
2.437
2.81
2.5
70
